Manifold Bracket

The Importance of Correct Installation and Alignment of Manifold Brackets for Heating Systems: Ensuring Efficiency and Performance

What Are Manifold Brackets and Why Are They Important?

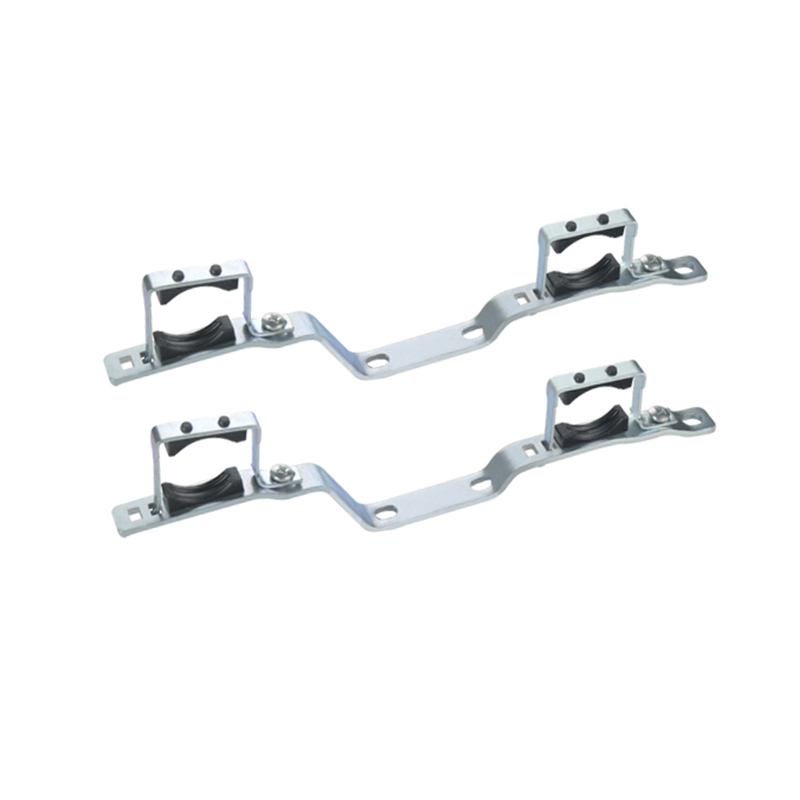

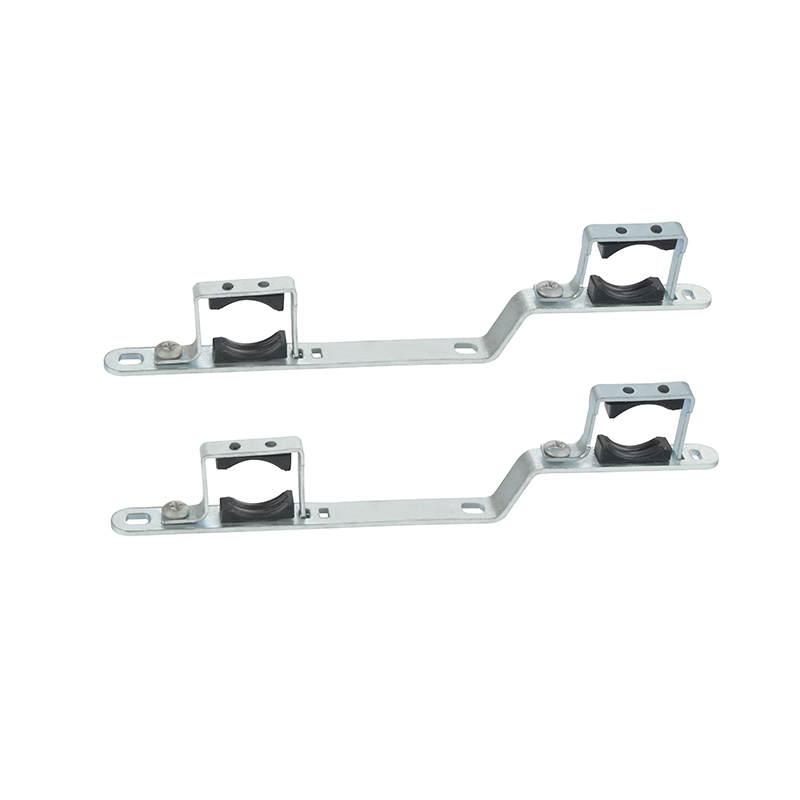

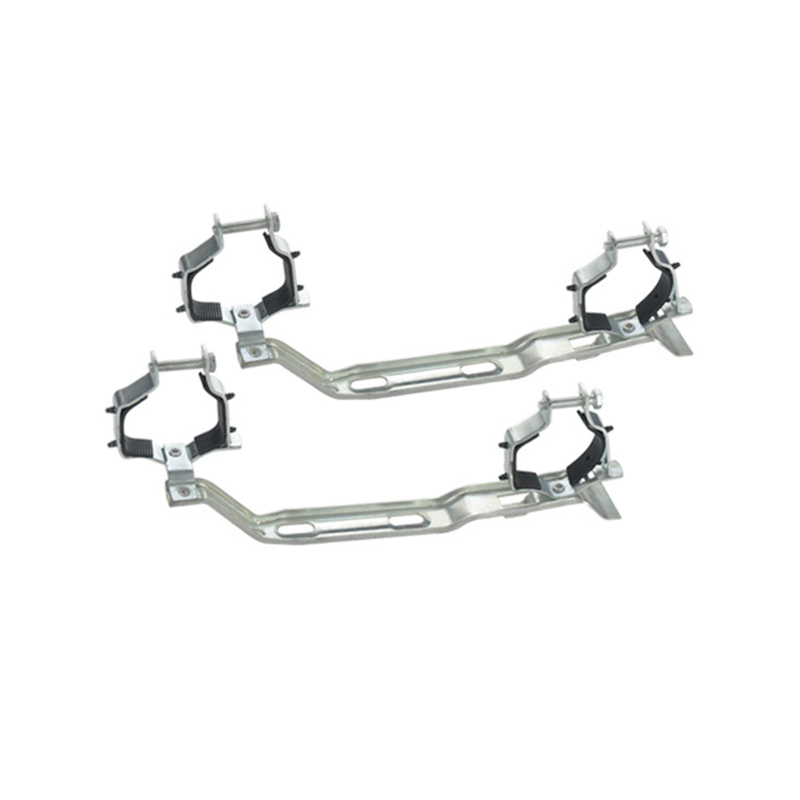

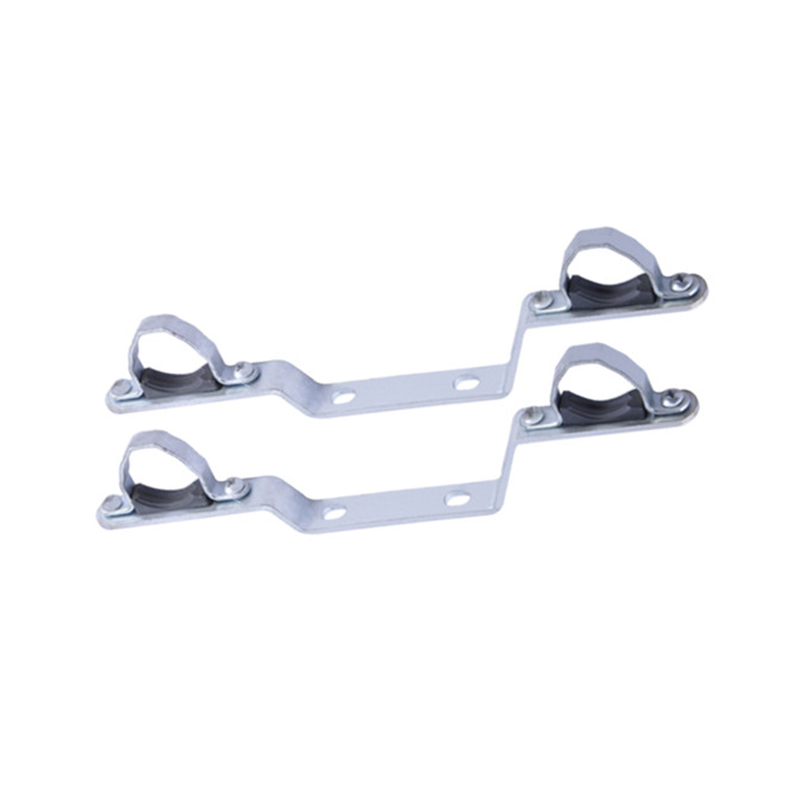

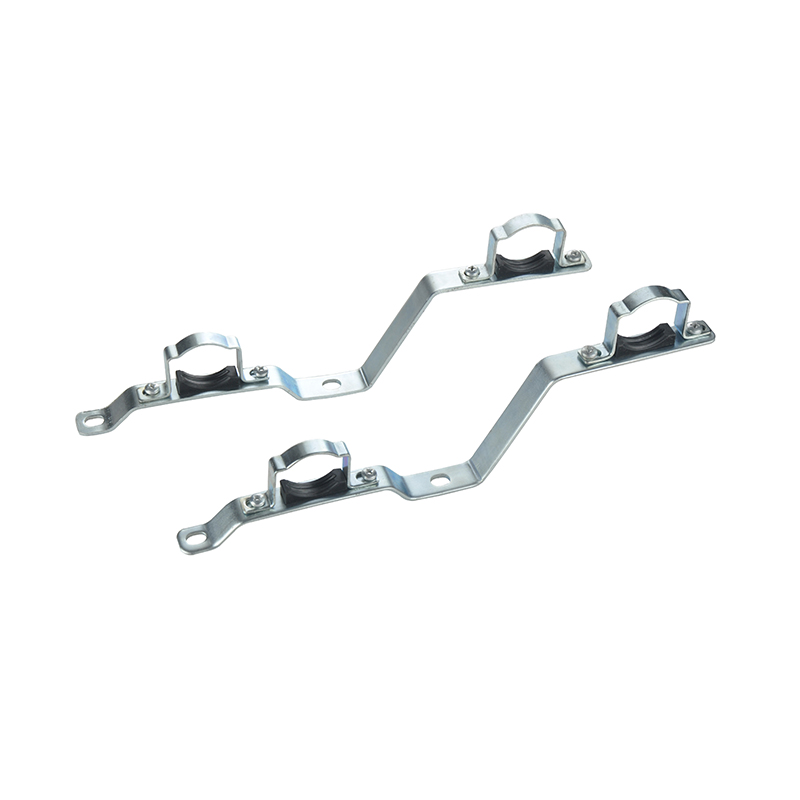

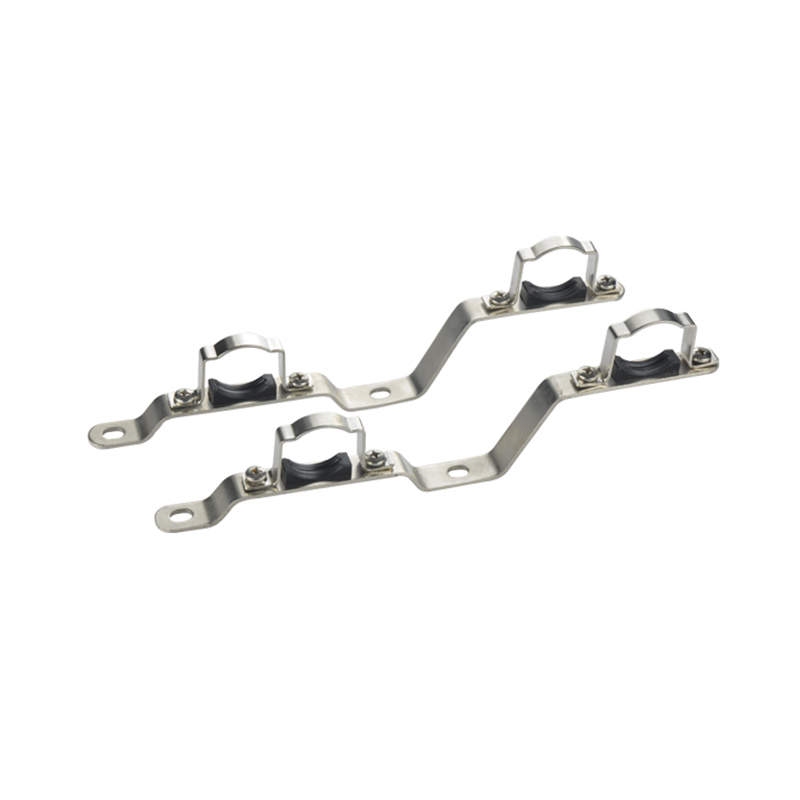

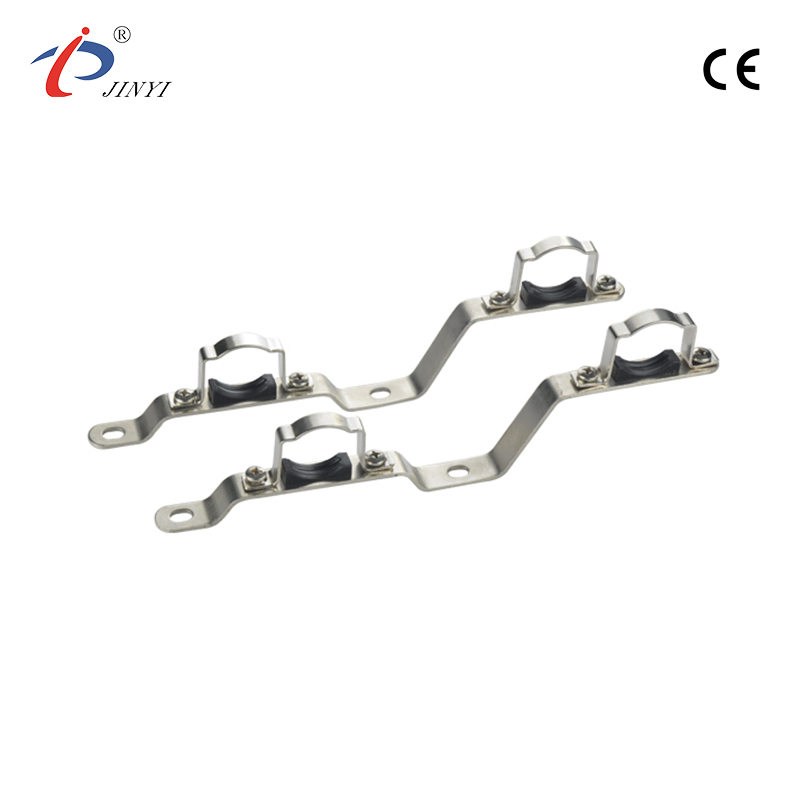

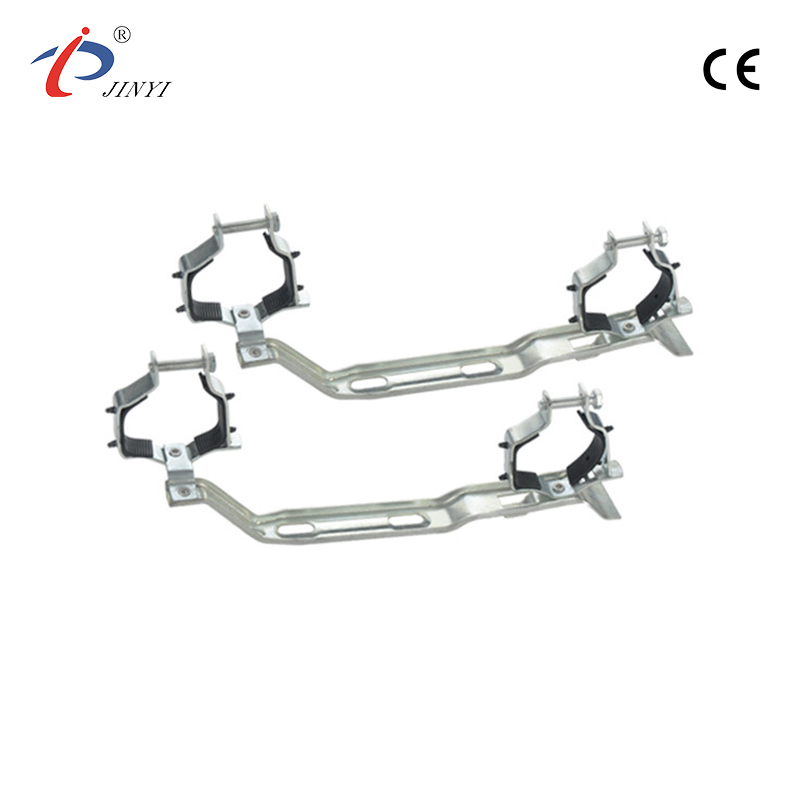

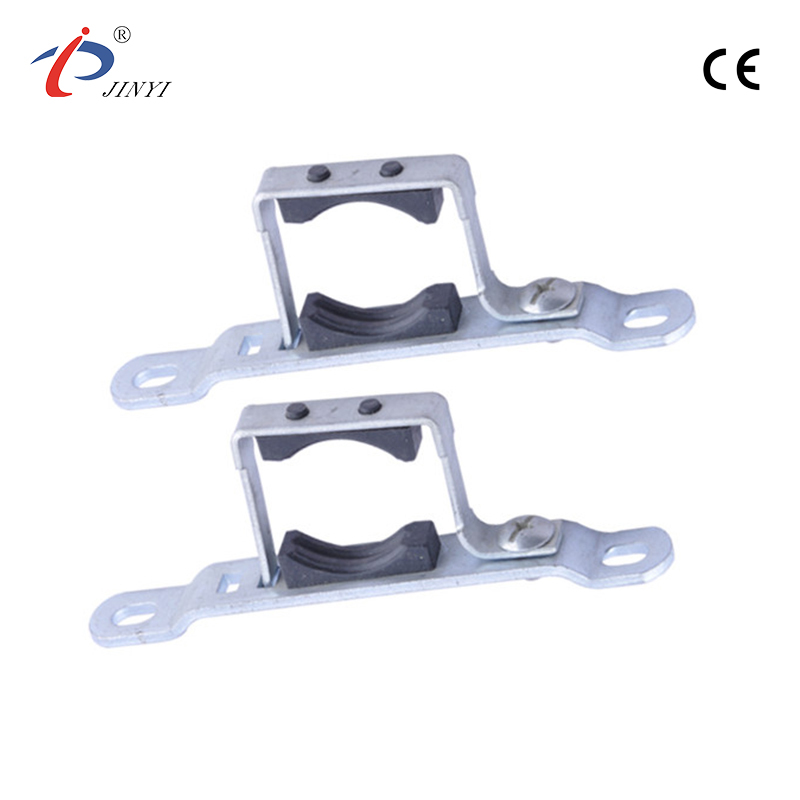

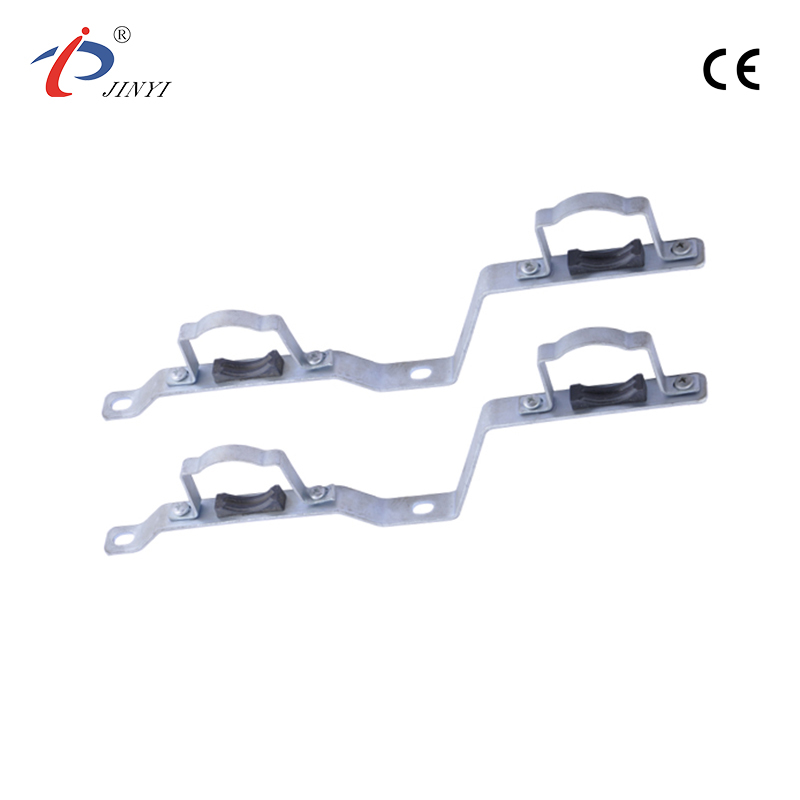

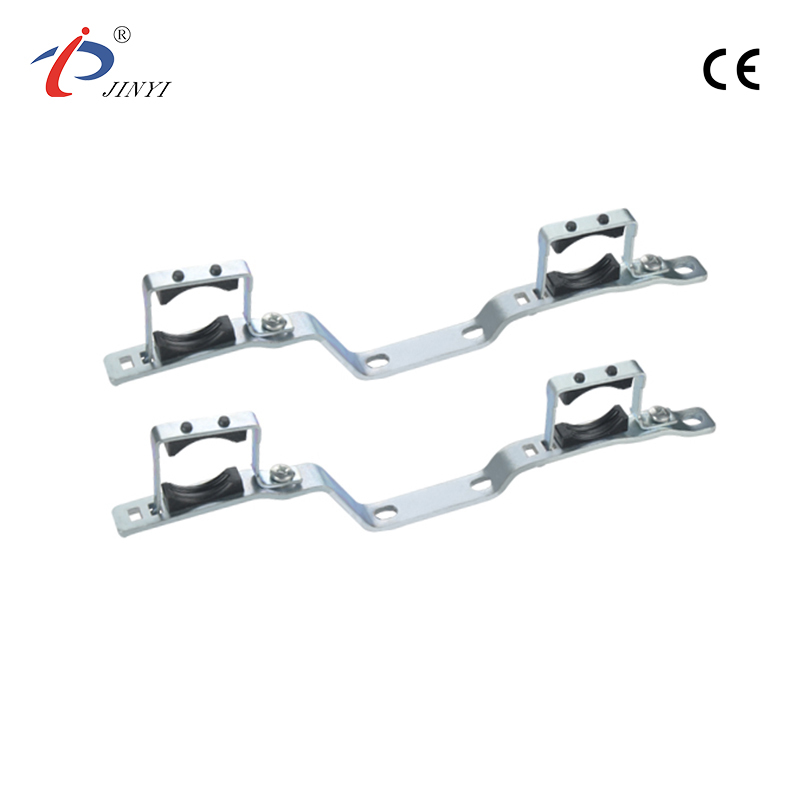

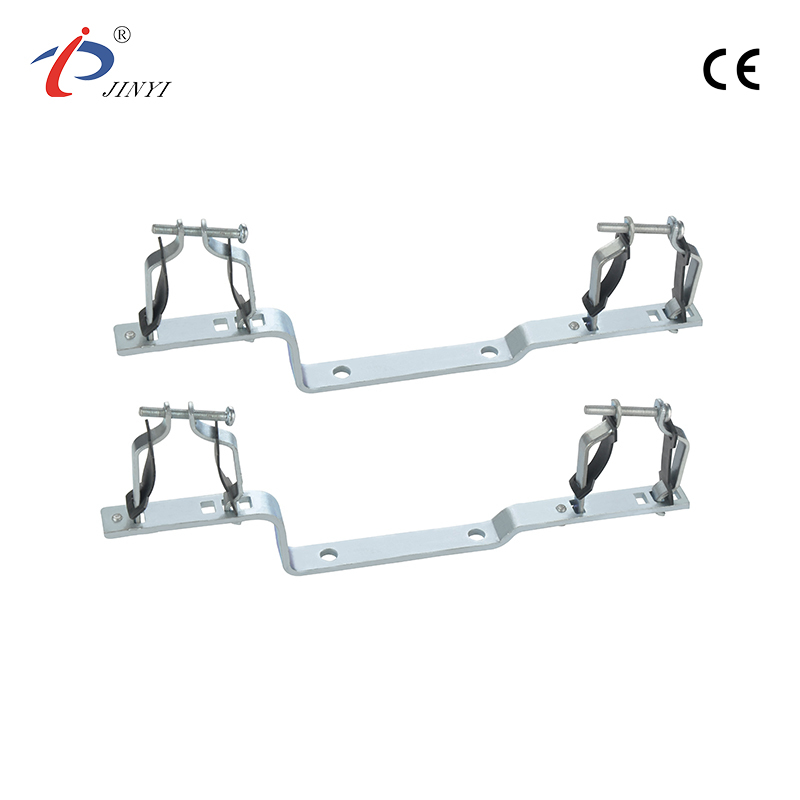

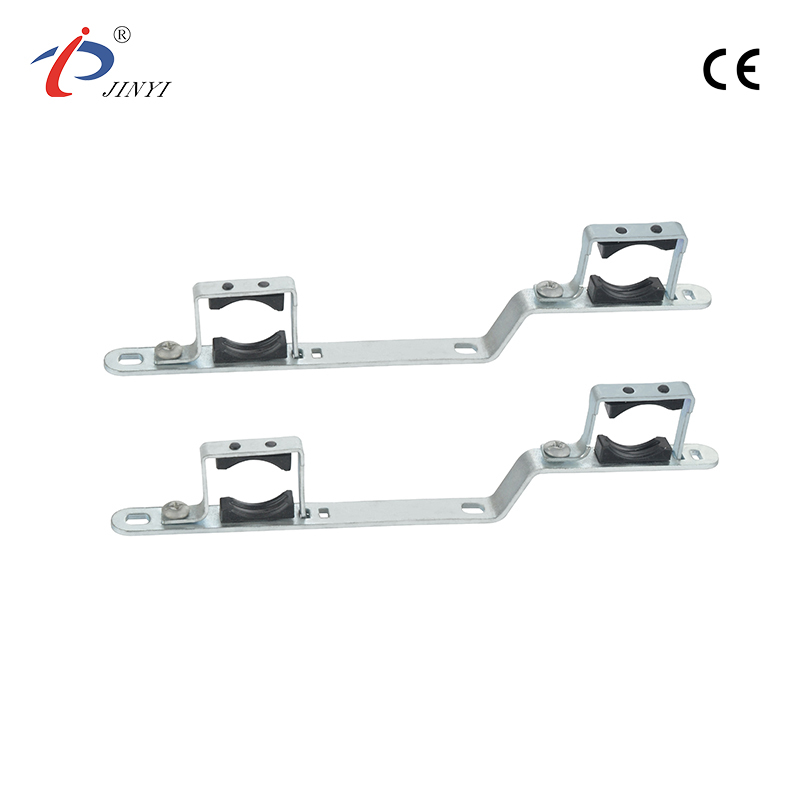

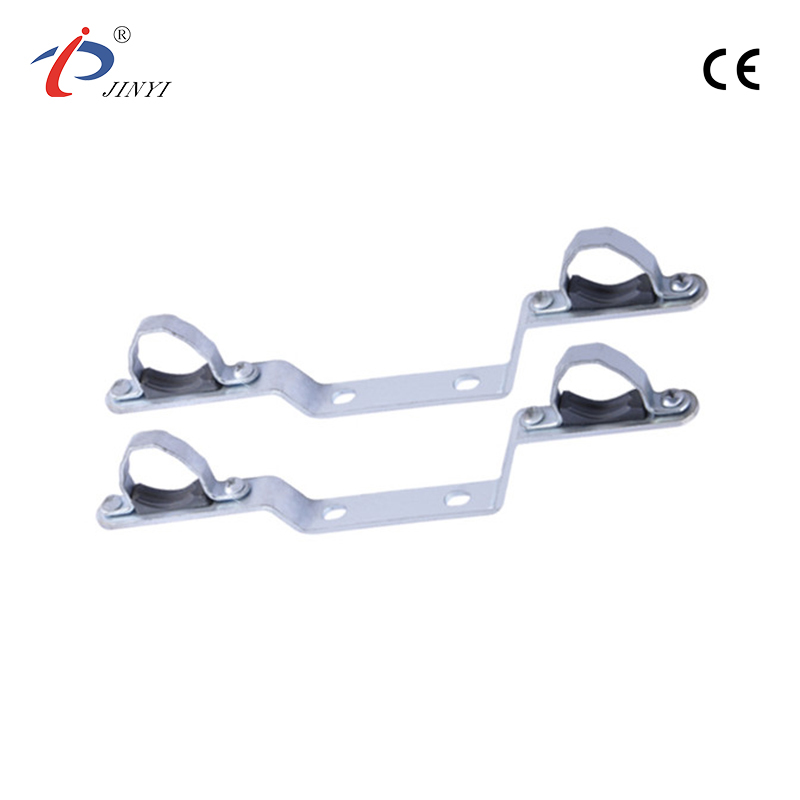

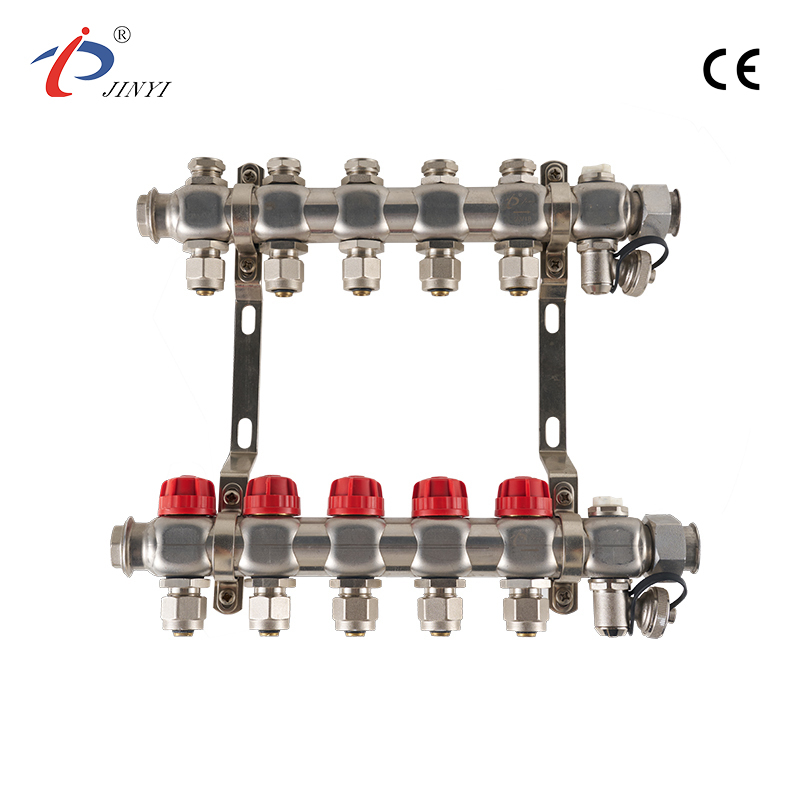

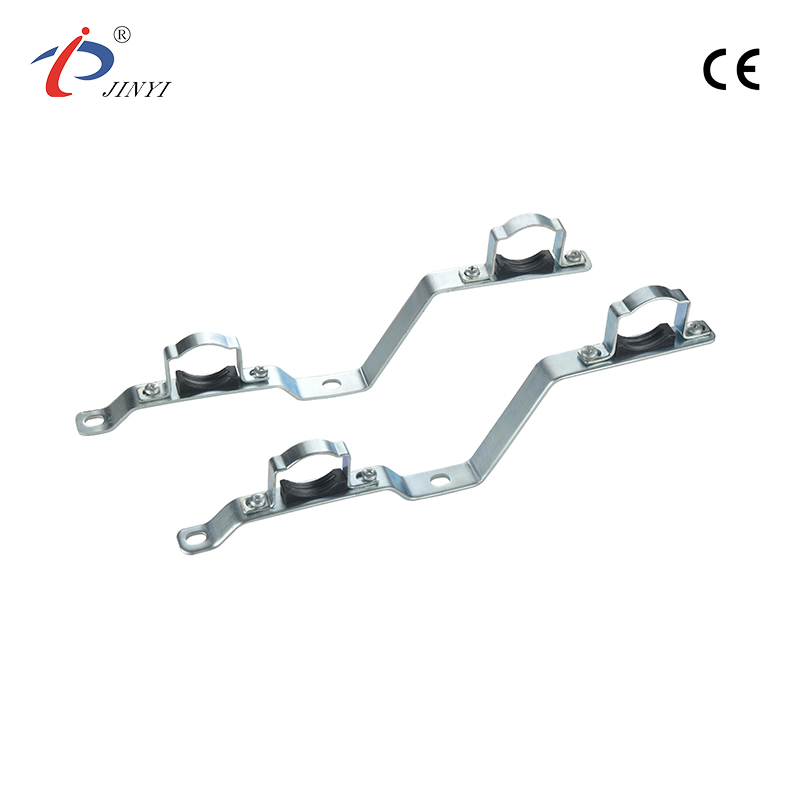

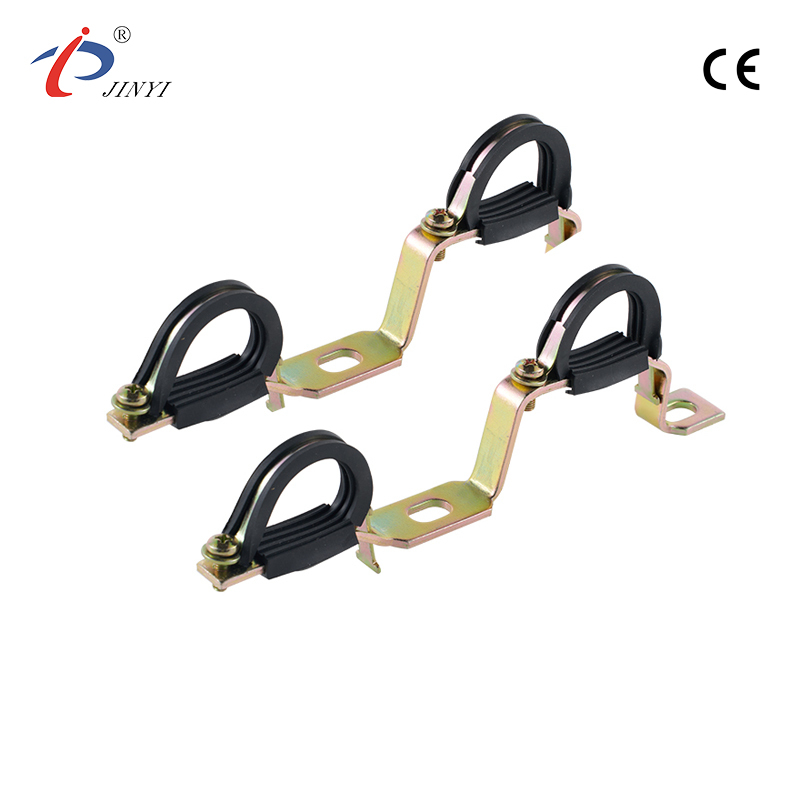

A manifold bracket is a mounting device that holds a manifold securely in place within heating systems, including radiator and underfloor heating setups. The manifold itself is responsible for distributing heated water to various zones within a system, ensuring consistent temperature regulation. Manifold brackets are essential for keeping the manifold properly aligned and positioned, thus ensuring that the system operates smoothly and efficiently. By providing stability and support, these brackets play a crucial role in maintaining flow balance and system integrity over time.

Proper installation of manifold brackets ensures that the manifold remains steady, preventing any shifts or misalignments that could lead to inefficiencies such as pressure drops or uneven heating. The use of high-quality, durable materials like stainless steel further extends the lifespan of both the manifold and the bracket, making them indispensable for long-term system performance.

How Manifold Brackets Contribute to Heating System Efficiency

One of the primary functions of manifold brackets is to secure the manifold in place to ensure consistent and even water flow across the system. When the manifold is properly aligned and held in position, it guarantees that the water flows through each zone of the heating system without obstruction or deviation. This is essential for avoiding pressure imbalances and ensuring that all areas of the system receive the correct amount of water for optimal heating.

Proper installation and alignment of the manifold bracket directly impact the thermal efficiency of the heating system. When the manifold is misaligned, it can cause uneven heat distribution, leading to hot spots or cold spots in different areas of the system. This reduces overall energy efficiency, as the system has to work harder to compensate for temperature inconsistencies. Ensuring that the manifold is aligned correctly helps maintain uniform temperature regulation and reduces the energy consumed during operation.

Incorrect installation or misalignment of manifold brackets can result in significant pressure drops or flow imbalances within the system. These issues may cause certain zones to receive insufficient water, reducing their heating efficiency and ultimately increasing energy costs. Properly installed manifold brackets ensure that the water is distributed evenly and at the correct pressure, preventing flow imbalances and minimizing system strain.

In many installations, the correct alignment of manifold brackets has been shown to improve the overall system efficiency. For example, in a residential underfloor heating system, aligning the manifold bracket according to the manufacturer's specifications led to a 20% reduction in energy consumption. Similarly, in commercial settings, ensuring proper bracket installation helped reduce maintenance costs by minimizing the need for frequent system repairs due to pressure drops or leaks.

Key Considerations for Proper Installation of Manifold Brackets

Before installing manifold brackets, it is essential to ensure that the bracket is compatible with the manifold and the heating system. This involves checking the dimensions, weight, and installation requirements of both the manifold and the bracket. Accurate measurements of the space where the manifold will be installed are crucial to avoid future misalignments or strain on the system.

The placement and orientation of the manifold bracket are critical for maintaining proper flow direction and avoiding system strain. The manifold should be positioned in such a way that it directs water evenly through the system. The bracket should hold the manifold in a fixed position, preventing any shifts or tilts that could disrupt the flow.

For accurate installation, it is essential to use the right tools and equipment. Common tools include leveling devices, measuring tapes, and drills for making precise adjustments. Using laser alignment tools and digital bubble levels ensures the manifold bracket is installed with high precision, reducing the chances of errors that could affect system performance.

Leveling is a key aspect of correct installation. Ensuring that the manifold bracket is level not only ensures optimal water flow but also reduces the likelihood of pressure fluctuations and uneven heating. Additionally, the manifold bracket must align with the overall layout of the heating system, taking into account pipe placement and the direction of flow to maintain system integrity.

Installation Practices for Manifold Brackets in Heating Systems

Step-by-Step Guide to Installing Manifold Brackets for Underfloor Heating and Radiator Systems

Measure and Mark: Begin by measuring the installation space for the manifold and marking the location for the manifold bracket.

Ensure Compatibility: Confirm that the bracket matches the manifold specifications in terms of size and weight.

Secure the Bracket: Use the appropriate fasteners and tools to secure the bracket to the wall or floor. Ensure it is level and aligned correctly.

Attach the Manifold: Once the bracket is securely in place, attach the manifold to the bracket, ensuring all connections are tight and leak-free.

Check Alignment: Double-check the alignment of the manifold to ensure it is perfectly straight and oriented in the correct direction.

Tips for Ensuring Accurate Positioning and Securing the Manifold Correctly

Use leveling devices to check alignment regularly during installation.

Always follow the manufacturer's instructions for precise measurements and positioning.

Ensure that the bracket can bear the weight of the manifold without any strain.

Common Mistakes During Installation and How to Avoid Them

Incorrect measurement: Always double-check your measurements before drilling or installing brackets.

Misalignment: Use proper leveling techniques and tools to ensure the bracket is aligned perfectly.

Over-tightening bolts: Tighten bolts securely but avoid over-tightening, which can damage the bracket or manifold.

Advanced Alignment Techniques: Ensuring Precision in Complex Systems

Jinyi Practices for Aligning Manifolds in Multi-Zone and Multi-Loop Heating Systems

In more complex heating systems, such as those with multiple zones or loops, it's crucial to maintain tolerance and spacing between manifolds to ensure proper flow. Each manifold should be positioned in a way that promotes equal distribution of water to all loops.

When working with multiple manifolds, maintaining the correct spacing and tolerance between them is key to ensuring consistent pressure and flow. Incorrect spacing can lead to pressure imbalances and uneven heating in certain zones.

The use of laser alignment tools and digital leveling systems can drastically improve installation accuracy. These tools help professionals achieve precise alignment and positioning, ensuring the manifold and bracket are perfectly aligned and securely mounted.

The Impact of Proper Installation on System Longevity and Maintenance

Correct installation not only enhances initial system performance but also contributes to the long-term health of the heating system. Proper alignment reduces strain on components, resulting in fewer breakdowns and a longer lifespan for the system.

Manifold brackets that are installed correctly help prevent common issues such as leaks, blockages, and system failures, ultimately reducing the need for costly repairs. Proper installation also minimizes the chances of thermal cycling damage and wear.

With proper installation and alignment, manifold brackets help prolong the lifespan of both the bracket itself and the entire heating system. This leads to longer-lasting performance, fewer maintenance interventions, and a better overall return on investment.

Properly installed manifold brackets help maintain optimal water flow and even heat distribution over time. This ensures that your heating system continues to perform efficiently, delivering consistent and reliable warmth throughout the space.
