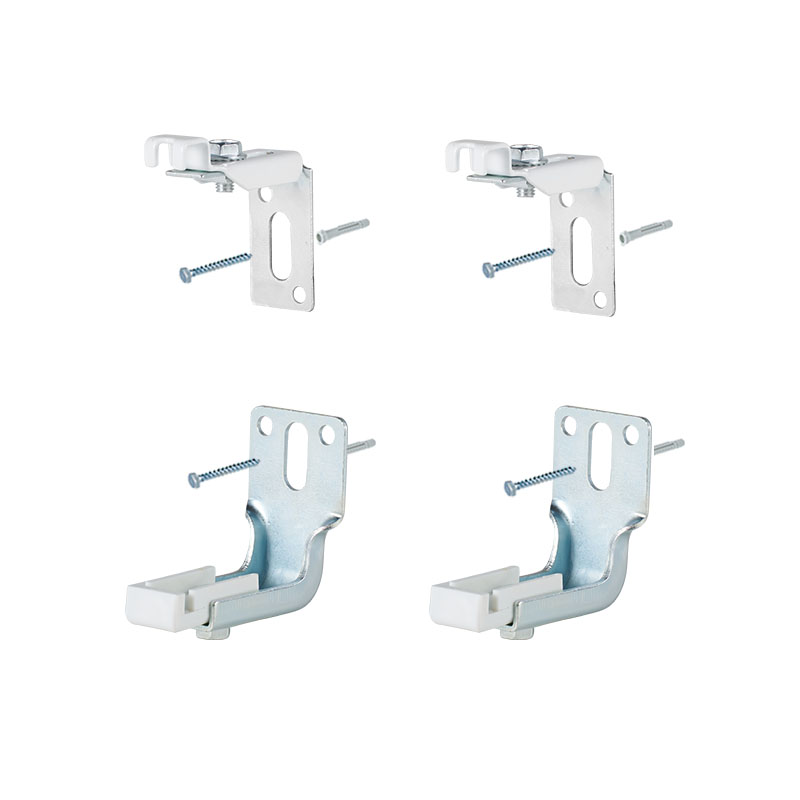

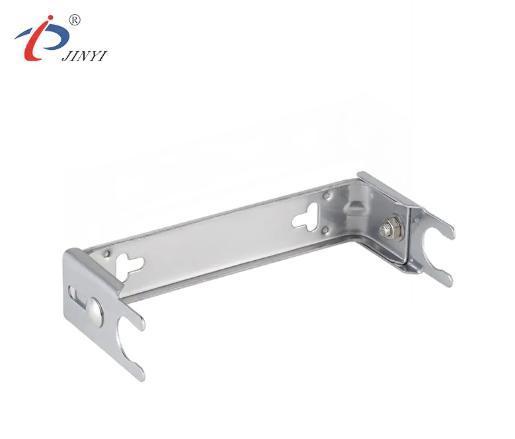

How to Install, Choose and Place The Right Wall Radiator Bracket. Practical tips for different wall types and sizes.

Wall radiator bracket might seems like a small detail, but they really hold the whole heating system together in homes and offices. They keep the radiator fixed firmly to the wall so heat spreads evenly without any wobbling or shifting over time. If the brackets are not quite right, you can end up with uneven warmth, extra noise, or even safety worries down the line. Plenty of people these days are updating their heating setups or doing repairs themselves, so knowing the basics about these supports makes a real difference for homeowners, renters doing small fixes, or anyone managing properties.

This article pulls together straightforward advice on the things most folks actually want to know. It walks through how to install these brackets step by step, what matters when picking one out, how to match them to whatever wall you have, why the exact spot you choose affects how heat moves around the room, some handy tips on getting the size right, and where they work best for normal daily life. The focus stays on real situations—like remodeling a living room or checking an old house—so you can use the ideas right away. Nothing here replaces calling in a pro when the job feels too big, but it gives you a solid starting point to make smarter choices.

Getting these supports right helps the heating run quietly and reliably without drawing attention to itself. Wall material, how heavy the radiator is, and the way the room gets used all matter. We will go through each part so you can see how the pieces fit together, whether you are working on one radiator or several around the house.

Wall Radiator Bracket serves as a key component in many heating arrangements, and handling it with care makes a noticeable difference in everyday comfort.

How to Install Wall Radiator Brackets Step by Step

Putting up these supports takes a bit of planning, but once you get the rhythm it is not too bad. Grab your tools first: a tape measure, a good level, a drill with the right bits, screws or anchors that fit your wall, and something to mark with. Safety is straightforward—shut off power if you are near outlets and wear eye protection while drilling.

Begin by measuring the back of the radiator to figure out the spacing between the mounting points. Mark the wall at the height you want, leaving enough room underneath for air to move freely. Double-check that the marks are level on both sides. A helper comes in handy here, especially with a big radiator.

Drill the holes carefully, matching the depth and width to the anchors which you are using. Solid walls take standard anchors, while hollow ones need the kind that open up behind the surface for a better grip. Slip the anchors in, then screw the supports on snugly but not so tight that you crack the wall.

Hang the radiator on the brackets next and use the level again to make sure everything sits straight. If it is a little off, loosen the screws, nudge things into place, and tighten back up. Give it a gentle push afterward to feel for any movement. Most new installers run into the same hiccups—holes drilled too shallow or the wrong anchors for the wall. Measuring twice really does save time, and working slowly keeps you from having to redo sections later. In tight rooms, this methodical pace helps everything line up the first time.

What to Consider When Choosing a Wall Radiator Bracket

Picking one of these supports is less about finding the flashiest option and more about matching it to what you actually need. Start with the radiator's weight. Heavier models need supports that can handle the load comfortably, so checking the basic load guidance on the packaging avoids guesswork.

The material the support is made from matters too. Steel or alloy versions hold up differently depending on the room. In damp spots like bathrooms, a finish that resists moisture helps the support stay in good shape longer. Think about the environment first instead of just grabbing the cheapest one on the shelf.

Cost is part of the equation, but it pays to weigh it against how the support will be used. Some come with simple height adjustments, others stay fixed once set. Reading the specs carefully shows what each type offers without any surprises later.

Compatibility with the radiator's mounting style is another quiet detail that matters. Measure the back panel before you shop so the supports line up cleanly. Many people jot down a short list—room type, wall material, any moisture issues—before comparing options. It keeps the decision practical and focused on real daily use rather than guesswork.

How to Match Wall Radiator Brackets to Different Wall Types

Walls are not all the same, so the way you fix these supports has to change with them. Plasterboard walls, common in newer homes, are lighter and often hollow. Here, the anchors that spread out behind the board help spread the weight instead of relying on the thin surface alone. Take care drilling and watch for any wiring inside.

Concrete or brick walls feel much more solid. Regular masonry anchors or screws bite in well and hold steady. The drilling takes a little longer because of the hardness, but the end result is usually rock-solid. A hammer drill can make that part easier on your arms.

Some walls mix things up—plaster over wooden studs, for example. A stud finder helps locate the solid parts for extra strength. If the stud does not sit exactly where you need the support, longer anchors or a small reinforcement plate can bridge the gap.

Screw length and type also shift with the wall. Longer fasteners reach deeper in some cases, while shorter ones keep from poking through the other side. If you have a scrap piece of the same material, a quick test can show what fits best. Before starting, walk the room and note the wall type at each spot. Older houses sometimes have uneven surfaces, so a thin shim or two can make the support sit flat. Matching the fixings to the wall this way keeps everything stable through normal use and seasons.

Why Wall Radiator Bracket Placement Matters for Heat Flow

Where you put these supports affects how warmth spreads in the room. When the radiator sits at a sensible height and spot, warm air rises naturally and moves around instead of pooling in one area. Too low or too high and you notice cold spots in corners or near the floor.

Leave a few inches of clearance under the radiator so air can flow underneath and rise along the front. Keep it away from bulky furniture or heavy curtains that block the movement.

Windows are a classic spot because cold air drops from the glass and mixes with the rising warmth. The supports just need to keep enough gap from the wall so the air can circulate without getting trapped. In bedrooms the placement might move a bit to avoid blowing directly across a bed. Bathrooms and kitchens follow the same idea—keep the radiator clear of water zones or cooking spaces.

After everything is up, walk around the room and feel where the warmth arrives first. Small tweaks to the height, if the supports allow it, can smooth things out. Thinking about how people actually move and sit in the space makes the placement feel natural rather than forced.

Tips for Selecting the Correct Wall Radiator Bracket Size

Size selection starts with simple measurements of the radiator. Note the distance between the mounting points and the overall length and depth. These numbers point you toward supports that fit without extra gaps or overhangs.

Many radiators fall into standard sizes, but a few need something a little different. Keep the measurements with you—on paper or a phone photo—so you can compare while looking at options. Symmetry helps both the look and the function; even spacing on each side keeps the radiator level and spreads the weight evenly.

A tape measure with clear markings and a small square for checking angles make the job less frustrating. Some folks put together a short checklist: radiator length, mounting spacing, wall type. Reviewing it before buying cuts down on returns. When several radiators are going in the same home, consistent support sizes give the rooms a cleaner, more pulled-together feel. Taking the time to measure properly at the beginning avoids headaches once the radiators are hanging.

Where to Place Wall Radiator Brackets for Everyday Use

Everyday placement comes down to how the room actually gets used. In living areas, an exterior wall often makes sense because it counters cold air coming in from outside. The supports should let the radiator sit where it does not block walkways or get hidden behind furniture.

Bedrooms work well with the radiator near the bed but not right beside it, so warmth feels even without creating hot spots. In rooms for kids or older adults, a height that stays out of easy reach adds a bit of safety. Bathrooms need the supports positioned to keep the radiator away from splashes, while kitchens avoid the immediate cooking zone.

Offices or shared commercial spaces focus on spreading heat across seating areas without blowing directly on anyone. Traffic flow matters—keep the radiator clear of doorways or high-traffic paths. Seasonal changes are worth a quick check too. In winter the radiator runs more, so the supports need to stay secure even under constant use. In warmer months a fast look confirms nothing has shifted while the system was off.

The six topics in this guide—installation steps, selection factors, wall matching, heat-flow placement, size tips, and everyday location—connect to each other in practical ways. Decisions at the start influence how the heating feels months later. Homeowners and hands-on installers often find that working through these points one at a time turns a potentially confusing job into something manageable.

These supports do their work quietly in the background, but getting them right makes daily comfort noticeably better. The ideas here are meant to help you approach the task with confidence, whether you are doing it yourself or talking with a professional. Different setups have their own small details, so always check the instructions that come with your supports. When the job feels beyond your comfort level, bringing in an experienced installer is the sensible move.

These supports play a steady role in keeping rooms warm without fuss. With careful measuring, the right match to the wall, and thoughtful placement, the heating system simply does its job as part of normal life. Use this guide as a starting point and adjust to fit your own space and routine.

FAQ

How heavy can a wall radiator bracket support?

The capacity depends on the bracket design and the wall type.

Can wall radiator brackets be adjusted after installation?

Some allow minor height or angle changes by loosening the screws, while others stay fixed once set. The instructions show what is possible for your type.

What tools are most useful for installing wall radiator brackets?

A measuring tape, level, drill, and the right anchors or screws usually cover the basics for most jobs.

Wall Radiator Bracket in Home Heating Installations: Real Talk from the Field

You walk into any renovation job or utility room and it's the same picture every single time. Pipes running along the walls, radiators waiting to be hung, and the crew trying to get everything mounted straight without extra trips back to the van. The wall radiator bracket has turned into part of the daily grind for plumbers, heating installers, and property maintenance teams, but a lot of guys still end up wasting time figuring out which bracket actually fits the job, how to get it on the wall right, and how to stop it from loosening up after a few seasons.

That's exactly why these six questions keep coming up on every job. This piece puts together the answers we hear the most. No theory, just the stuff that actually works when you're trying to keep the install moving and the heat flowing without constant fiddling. We'll walk through how to install the bracket on different walls, which types match different radiators, tips for choosing one that fits your heating setup, why placement matters for even heat, the right spot for easy access later, and the simple care that keeps everything running steady day after day.

How to Install a Wall Radiator Bracket on Different Wall Types

Putting a wall radiator bracket on different wall types isn't hard once you stick to the same order every time. You start by marking the exact spot where the radiator is going to hang. Measure it twice so the bracket lines up clean with the pipe connections and the radiator sits level when it goes up.

Then you fix the bracket itself. Use the holes it comes with and fasten it down with the right anchors for whatever wall you're on — concrete, brick, drywall, or wood all take different screws and plugs. Make sure the bracket sits dead level because even a little tilt can make the radiator sit crooked and throw the heat off later. Slide the radiator onto the bracket, tighten the connection nuts, and give it a light tug to check nothing moves.

Keep a short list in the van: level, tape measure, drill, and the right anchors and screws. The two things crews mess up most are skipping the level check after fixing it down or grabbing the wrong anchor for the wall material. Solid masonry walls usually go quick with heavy plugs. Drywall or stud walls need extra care with toggles or backing plates so the bracket does not pull loose over time. Outdoor or garage walls sometimes need a small weather cover added after everything is tight.

Different wall types need small tweaks. Brick or block walls take standard masonry anchors and hold steady for years. Stud walls in newer homes often need you to find the timber first and screw straight into it. The basic steps stay exactly the same — mark, level, secure, test — but the fixing method changes with the wall. Take a minute on that first install. Open the heating line slow after you finish and watch for any leaks or shifting. Most crews get the whole thing done in under forty minutes once they have the routine down for each wall type.

What Types of Wall Radiator Bracket Suit Different Radiator Sizes and Rooms

Not every wall radiator bracket works the same for every radiator you hang. The type you grab has to match the radiator size, the room layout, and whether the spot is in a living area or a utility space. Standard fixed brackets handle most steel or cast-iron radiators in regular rooms where the unit sits flat against the wall. Adjustable brackets come in handy when the radiator needs to sit a little farther out for pipe routing or when the wall is not perfectly straight.

Size makes a big difference. Smaller brackets fit the compact radiators you see in bathrooms or hallways. Medium brackets work for the standard living-room sizes that heat a typical space. Larger brackets are made for the long or tall radiators in bigger rooms or commercial areas that need extra support across the length. The bracket arms need enough reach to hold the weight without bending, but not so much that the radiator sits too far from the wall and loses heat into the room.

The room changes things too. Living rooms often use brackets that keep the radiator close to the wall for a clean look. Kitchens or utility rooms sometimes need brackets with extra clearance so you can clean behind them or run pipes easier. Some jobs use corner brackets or angled ones when the radiator goes near a window or in an alcove. In daily work crews keep notes on which bracket gave the cleanest hang for each radiator size and room. After a while that list turns into a quick cheat sheet so the next job starts with the right one instead of guessing. Switching between types stays easy when you keep the common sizes organized in the van or on the shop shelf.

Tips for Choosing a Wall Radiator Bracket That Matches Your Heating Needs

How many radiators you install each week pretty much decides the wall radiator bracket you end up using. Whether you do a few house jobs or run bigger apartment or commercial batches, the manufacturer needs to understand that volume and keep brackets coming at the speed your crews actually move.

Here's a short checklist that helps sort the options:

• Does the bracket range cover the radiator sizes and wall types you work with most?
• How quick can they send replacements when something gets damaged on site?
• Do they give clear notes that new guys can follow without calling back?
• Can they make small changes to the design if your typical jobs shift later?

A quick look at sample brackets or a stop at the manufacturer's shop tells you more than any list ever will. You can feel the weight, check how the arms line up, and see how easy the radiator slides onto the bracket. Talking through your usual job mix and turnaround time shows whether the supply will stay smooth.

Crews doing moderate numbers usually do fine with standard brackets that ship fast. Teams on higher volume look for manufacturers who can keep a bit of stock ready. The right wall radiator bracket manufacturer explains how their brackets hold up after lots of installs and what small habits help them last longer in regular use.

Some crews also ask about custom options when they need a slight tweak without ordering a whole new design every time. The manufacturer that handles both regular wall radiator brackets and small custom runs usually fits a wider mix of field work.

Trying a sample bracket on your next job is still the fastest way to know for sure. One or two installs show whether it stays steady and whether the radiator sits level without extra packing.

Why Proper Wall Radiator Bracket Placement Matters for Even Heat Distribution

Proper wall radiator bracket placement affects how evenly the heat spreads through the room. When the bracket holds the radiator level and at the right height, the hot water flows the way it should and the warmth reaches across the space instead of pooling at the bottom. A tilted or loose bracket can let the radiator sit crooked, which makes one side hotter than the other and leaves cold spots farther away.

Placement also matters for how long the system actually lasts. A bracket that keeps the radiator away from heavy wall movement or pipe vibration cuts down on wear on the valves and joints. In rooms with foot traffic or near doors, a good bracket acts like a small cushion and keeps everything from shaking loose over time.

A lot of crews check placement twice — once when they mark the spot and again after the radiator is hung. A quick level check and a light push test tell you whether the setup will hold under normal daily use. Over time crews learn that spending an extra minute on placement saves hours of chasing uneven heat complaints down the road.

The result is rooms that feel comfortable all the way through and crews that spend less time going back to the same job to fix little issues.

Where to Position a Wall Radiator Bracket for Easier Access and Maintenance

The smart spot for a wall radiator bracket puts it at a height and place that makes daily checks and future service simple. Most crews mount it so the top of the radiator sits between 1.2 and 1.5 meters off the ground. That height keeps the air vents and valves easy to reach for whoever is bleeding the system or doing routine work.

Leave clear space around the bracket on all sides. You need room to reach the bleed valve, read the temperature if there is one, and pull the radiator off for service without fighting other pipes or furniture. Crowding it into a tight corner or behind a door usually creates extra work the next time someone has to service it.

For living rooms many crews place the bracket under a window so the warm air rises and mixes with the cold air coming in. Utility rooms or hallways often go on the main wall right after the pipe run so everything stays in one straight line. Apartment jobs sometimes use a staggered layout when several radiators sit side by side so each one has its own clear access path.

Mark the spot on the plans early so the bracket ends up in the right place before the pipes get sealed in. Good lighting around the area also makes bleeding the radiator quicker on dark days. The same rule works whether you're doing house installs, apartment blocks, or small commercial spaces: put it where people can reach it easy and service stays simple.

How to Maintain a Wall Radiator Bracket for Steady Everyday Operation

Daily care keeps wall radiator brackets working without surprises. After each install you wipe the bracket and the area around the radiator to clear any dust or pipe residue before it hardens. A quick look that the bolts are still tight takes less than a minute and stops small movement from turning into bigger problems later.

Once a month crews should give the bracket a closer check. Look at the mounting points for any wear, make sure the level is still good, and clean any buildup that could affect the radiator. Lubricate the adjustment slots on adjustable brackets if the notes say to do it.

Every six months a deeper look makes sense. Test that the bracket still holds the radiator steady under normal use, check the fixing hardware for corrosion, and write the results in a simple job log. After a while you start seeing patterns before they turn into real headaches.

Seasonal changes need attention too. In colder months watch for condensation that can loosen fittings over time. In warmer or humid conditions make sure the area around the bracket stays clear of dust. Small habits add up: keep spare bolts and anchors in the van, store extra brackets flat so they don't bend, and make sure every crew follows the same quick-check steps.

Stick to the routine and the brackets stay ready for the next job and the radiators keep giving steady heat day after day.

The six areas we covered — installation steps on different walls, matching brackets to different radiators, tips for choosing the right one, why placement matters for heat, the right spot for access, and daily maintenance — hit most of the real questions that come up on heating jobs. Paying attention to these points helps the wall radiator bracket part of the work run without turning into a daily headache.

Picking a wall radiator bracket manufacturer that actually fits your needs and using the brackets the way they are meant to be used matters more than simply ordering the parts. We have focused on wall radiator brackets for many years and keep both ready stock and custom options available. Free technical advice and basic installation guidance come with every order.

Click below to see the current range. Leave your radiator size and typical job type in the comments and we can suggest the configuration that lines up with your work. Scan the QR code to receive the installation guide and maintenance checklist.

FAQ

How long does it take to install one wall radiator bracket? Most crews finish the mounting and radiator placement in under forty minutes once they follow the same order every time.

Do different radiator sizes need different brackets? Yes. Smaller radiators use compact brackets while larger ones need heavier support across the length to stay steady.

Is a special tool set required for installation? A basic level, tape measure, drill, and the right anchors are usually enough for most walls.

How often should the bracket be checked after installation? A quick visual check after the first week and then once a month keeps everything secure.

Can the same bracket work for both heavy cast-iron and lighter steel radiators? Some adjustable brackets handle both, but heavier radiators usually need extra support at the mounting points.

Does bracket position affect heat distribution? Yes. Keeping the radiator level and at the right height helps the warm air move evenly through the room.

Are there special tips for different wall materials? Yes. Masonry walls use standard plugs while stud walls need backing or toggles to hold steady over time.

Water Meter Bracket in Plumbing and Utility Installations: Real Talk from the Field

You step onto pretty much any job site or walk into a utility room and it's the same picture every single time. Pipes running along the walls, meters sitting at all kinds of heights, and the crew trying to get everything locked down tight without having to run back to the truck for extra parts. The water meter bracket has turned into part of the daily grind for plumbers, property guys, and city crews, but a lot of teams still end up wasting time figuring out which bracket actually fits the job, how to get it mounted straight, and how to stop it from loosening up after a few seasons.

That's exactly why these six questions keep coming up on every job. This piece puts together the answers we hear the most. No theory, just the stuff that actually works when you're trying to keep the install moving and the readings steady. We'll walk through how to put the bracket on the line, which types match different meters, how to pick a manufacturer that fits what you do every day, why the position really matters, the right spot for easy checks later, and the simple care that keeps everything running without surprises.

How to Install a Water Meter Bracket on Your Plumbing Line

Putting a water meter bracket on your plumbing line isn't hard once you stick to the same order every time. You start by marking the exact spot on the pipe or wall where the meter is going to sit. Measure it twice so the bracket lines up clean with the inlet and outlet without putting any twist on the pipes.

Then you fix the bracket itself. Use the holes it comes with and fasten it down with the right anchors for whatever surface you're on — concrete, drywall, or wood all take different screws. Make sure the bracket sits dead level because even a little tilt can throw the meter off later. Slide the meter into place, tighten the connection nuts, and give it a light tug to check nothing moves.

Keep a short list in the truck: level, tape measure, drill, and the right screws and anchors. The two things crews mess up most are skipping the level check after bolting it down or grabbing the wrong anchor for the wall. Outdoor lines sometimes need a small cover added after everything is tight. Indoor jobs usually go faster since you're not fighting weather while you work.

Different jobs need small tweaks. House pipes often use the smaller brackets that fit tight spaces near the main shut-off. Bigger commercial or city lines want heavier brackets that hold larger meters steady under higher flow. The basic steps stay exactly the same — mark, level, secure, test — but the bracket size and how you fix it change with the job.

Take a minute on that first install. Open the line slow after you finish and watch for any leaks or shifting. Most crews get the whole thing done in under thirty minutes once they have the routine down.

What Types of Water Meter Bracket Suit Different Meter Sizes and Locations

Not every water meter bracket works the same for every meter you put in. The type you grab has to match the meter size, the pipe diameter, and whether the spot is inside or out in the weather. Wall-mounted brackets handle most indoor house jobs where the meter sits flat against a basement or utility room wall. Pipe-mounted ones clamp straight onto the line and save space when there's no solid wall close by.

Size makes a big difference. Smaller brackets fit the regular 15 mm or 20 mm meters you see in homes and small apartments. Medium brackets work for the 25 mm to 40 mm ones common in apartment buildings or light commercial work. Larger brackets are made for the big municipal meters that need extra support so they don't sag under pressure.

The location changes things too. Outdoor brackets need heavier material and sometimes extra protection because they sit out in rain and sun. Indoor brackets can stay simpler since they stay dry. Some jobs use adjustable brackets that let you slide the meter up or down a little even after the pipes are already set.

On the job crews keep notes on which bracket gave the cleanest install for each meter size. After a while that list turns into a quick cheat sheet so the next job starts with the right one instead of guessing. Switching between types stays easy when you keep the common sizes organized in the truck or on the shop shelf.

Tips for Choosing a Water Meter Bracket That Matches Your Daily Needs

How many meters you install each week pretty much decides the water meter bracket you end up using. Whether you do a few residential jobs or run bigger city batches, the manufacturer needs to understand that volume and keep brackets coming at the speed your crews actually move.

Here's a short checklist that helps sort the options:

• Does the bracket range cover the meter sizes you install most?
• How quick can they send replacements when something gets damaged on site?
• Do they give clear notes that new guys can follow without calling back?
• Can they make small changes to the design if your typical jobs shift later?

A quick look at sample brackets or a stop at the manufacturer's shop tells you more than any list ever will. You can feel the weight, check how the holes line up, and see how easy the meter slides in and out. Talking through your usual job mix and turnaround time shows whether the supply will stay smooth.

Crews doing moderate numbers usually do fine with standard brackets that ship fast. Teams on higher volume look for manufacturers who can keep a bit of stock ready. The right water meter bracket manufacturer explains how their brackets hold up after lots of installs and what small habits help them last longer in regular use.

Some crews also ask about custom options when they need a slight tweak without ordering a whole new design every time. The manufacturer that handles both regular water meter brackets and small custom runs usually fits a wider mix of field work.

Trying a sample bracket on your next job is still the fastest way to know for sure. One or two installs show whether it stays steady and whether the meter sits level without extra shims.

Why Proper Water Meter Bracket Placement Matters for Accurate Readings

Proper water meter bracket placement affects how steady the readings stay over time. When the bracket holds the meter level and at the right height, the inside parts move the way they should and the numbers stay consistent. A tilted or loose bracket can let the meter shift a little with every flow change, which throws the readings off and creates extra work later.

Placement also matters for how long the meter actually lasts. A bracket that keeps the meter away from heavy pipe vibration or ground movement cuts down on wear on the seals and gears inside. In busy areas or spots near heavy equipment, a good bracket acts like a small cushion and keeps everything from shaking loose.

A lot of crews check placement twice — once when they mark the spot and again after the meter is mounted. A quick level check and a light push test tell you whether the setup will hold under normal daily flow. Over time crews learn that spending an extra minute on placement saves hours of chasing inaccurate readings down the road.

The result is meters that stay reliable and crews that spend less time going back to the same job to fix little issues.

Where to Position a Water Meter Bracket for Easier Access and Maintenance

The smart spot for a water meter bracket puts it at a height and place that makes daily reads and future service simple. Most crews mount it between 1.2 and 1.5 meters off the ground so the meter face sits right at eye level for whoever is reading it. That height works for short and tall guys and keeps the dials easy to see without bending or reaching.

Leave clear space around the bracket on all sides. You need room to reach the shut-off valves, read the numbers, and pull the meter for service without fighting other pipes or walls. Crowding it into a tight corner or behind a door usually creates extra work the next time someone has to service it.

For outdoor installs many crews put the bracket inside a small protective box that still lets you open the front easy. Indoor setups often go on the main utility wall right after the shut-off so everything stays in one straight line. City jobs sometimes use a staggered layout when several meters sit side by side so each one has its own clear path for reading.

Mark the spot on the plans early so the bracket ends up in the right place before the pipes get sealed in. Good lighting around the area also makes reading the meter quicker on dark days or in basement corners. The same rule works whether you're doing house installs, apartment blocks, or city lines: put it where people can reach it easy and service stays simple.

How to Maintain a Water Meter Bracket for Steady Everyday Operation

Daily care keeps water meter brackets working without surprises. After each install you wipe the bracket and the area around the meter to clear any dust or pipe residue before it hardens. A quick look that the bolts are still tight takes less than a minute and stops small movement from turning into bigger problems later.

Once a month crews should give the bracket a closer check. Look at the mounting points for any wear, make sure the level is still good, and clean any buildup that could affect the meter. Lubricate the adjustment slots on adjustable brackets if the notes say to do it.

Every six months a deeper look makes sense. Test that the bracket still holds the meter steady under normal flow, check the fixing hardware for corrosion, and write the results in a simple job log. After a while you start seeing patterns before they turn into real headaches.

Seasonal changes need attention too. In colder months watch for ice or condensation that can loosen fittings over time. In warmer or wet conditions make sure the area around the bracket stays clear of debris. Small habits add up: keep spare bolts and anchors in the truck, store extra brackets flat so they don't bend, and make sure every crew follows the same quick-check steps.

Stick to the routine and the brackets stay ready for the next job and the meters keep giving steady readings day after day.

The six areas we covered — installation steps, matching brackets to different meters, choosing the right manufacturer, why placement matters, the right spot for access, and daily maintenance — hit most of the real questions that come up on plumbing and utility jobs. Paying attention to these points helps the water meter bracket part of the work run without turning into a daily headache.

Picking a water meter bracket manufacturer that actually fits your needs and using the brackets the way they are meant to be used matters more than simply ordering the parts. We have focused on water meter brackets for many years and keep both ready stock and custom options available. Free technical advice and basic installation guidance come with every order.

Click below to see the current range. Leave your meter size and typical job type in the comments and we can suggest the configuration that lines up with your work. Scan the QR code to receive the installation guide and maintenance checklist.

FAQ

How long does it take to install one water meter bracket? Most crews finish the mounting and meter placement in under thirty minutes once they follow the same order every time.

Do different meter sizes need different brackets? Yes. Smaller residential meters use compact brackets while larger municipal meters need heavier support to stay steady.

Is a special tool set required for installation? A basic level, tape measure, drill, and the right anchors are usually enough for most jobs.

How often should the bracket be checked after installation? A quick visual check after the first week and then once a month keeps everything secure.

Can the same bracket work for both indoor and outdoor meters? Some adjustable brackets handle both, but outdoor jobs usually need extra weather protection.

How much space is needed around the mounted bracket? Enough room on all sides for easy reading and service — about 30 to 40 cm clearance usually works in practice.

Does bracket position affect meter accuracy? Yes. Keeping the meter level and away from heavy vibration helps the readings stay consistent over time.

Are there special tips for cold or wet conditions? Yes. In cold months watch for ice on the fittings and in wet areas make sure the bracket stays clear of standing water.

Meta Description: Everything wholesalers need to know about buying decoupling tanks in bulk — MOQ requirements, production lead times, and pricing factors.

Keywords: wholesale decoupling tank, decoupling tank MOQ, bulk decoupling tank price, buffer tank wholesale

If you're planning to source decoupling tanks in bulk from a Chinese manufacturer, understanding the key commercial terms before negotiating will save you time and prevent misunderstandings. Here's a straightforward breakdown of what to expect.

Minimum Order Quantity (MOQ)

MOQ for wholesale decoupling tanks varies by manufacturer and product type. For standard models, MOQs typically start from 50–200 units per order. Custom or OEM orders — with specific dimensions, materials, or branding — may require higher minimums, often 100–500 units, to justify tooling and setup costs. At JINYI, we work flexibly with buyers and discuss MOQ based on your specific product requirements.

Lead Time

Standard decoupling tank orders usually ship within 15–25 business days after order confirmation and deposit receipt. Custom OEM orders with special specifications may require 30–45 days to account for design approval, material sourcing, and production scheduling. Sample orders are typically fulfilled within 7–15 business days.

Pricing Factors

Wholesale pricing for decoupling tanks depends on several variables: material type (stainless steel costs more than carbon steel), tank capacity and wall thickness, connection type (threaded, flanged, or welded), surface treatment (galvanized, powder coated, or raw), and order volume. Larger orders almost always unlock better per-unit pricing.

Getting an Accurate Quote

To receive an accurate wholesale quote, prepare your technical specifications in advance — including required pressure rating, volume, connection sizes, and target market certifications. This allows manufacturers like JINYI to provide precise pricing without unnecessary back-and-forth. Reach out to our sales team to start your quote today.

Visit our official website: www.yh-jinyi.com

Contact us to discuss samples, drawings, or OEM cooperation

Wall Radiator Bracket Guide: Practical Insights on Installation, Selection, Positioning and Everyday Care

When the temperature drops and everyone starts thinking about staying warm, wall-mounted radiators still turn up in a lot of homes. They're compact, they push out steady heat, and they don't eat up floor space like some other options. Yet the part that actually keeps the radiator hanging there — the Wall Radiator Bracket — often gets overlooked until something feels off. These brackets do more than just hold weight. They affect how air moves around the unit, how stable the whole setup stays over time, and how much hassle you end up dealing with later.

This guide pulls together the questions that come up again and again when people are planning a new install or checking an older system. We'll walk through fitting brackets on different walls, picking the right style for your radiator, matching them to your heating arrangement, getting the position right for comfortable warmth, and keeping everything in decent shape without turning it into a weekend project. The details come from ordinary homes and small renovation work, so you can picture how it fits your own place without any over-the-top claims.

How to Install Wall Radiator Brackets on Different Wall Surfaces

The first thing that matters is the wall itself. Brick, concrete, plasterboard, or timber — each one needs its own approach if you want the brackets to stay put for years instead of loosening up after a couple of seasons.

Start by clearing the space and figuring out where the pipes will come in. Grab a spirit level, pencil, drill, and the right fixings for your wall. On solid brick or concrete, mark the holes carefully so the brackets sit dead level. Use a masonry bit, tap in proper wall plugs, and drive the screws home. Give each one a gentle tug after you finish to make sure nothing shifts.

Plasterboard walls are trickier because the board alone doesn't like heavy loads. If you can find the studs behind it with a stud finder, line up at least one fixing point on each stud. No studs in the right spot? Switch to cavity anchors that open up behind the board like little umbrellas. Some people screw a short wooden batten across a couple of studs first, then bolt the brackets to the batten — it spreads the weight and feels much more solid. Just don't crank the screws too tight or you'll pull the board out.

When the wall has that bumpy dot-and-dab plaster finish, longer fixings reach through to the solid layer behind. On timber-frame walls you can screw straight into the studs once you've located them, but always check the wood isn't soft or damaged first.

Once the brackets are up, hang the radiator loosely to test. It should sit flat without rocking. Leave room at the bottom for valves if your pipes come in there. A lot of people skip the level check and end up with a slight tilt that shows up once the paint dries. Taking an extra minute to double-check alignment saves having to redo the whole job later. In older houses where walls aren't perfectly straight, this step becomes even more useful.

What Types of Wall Radiator Brackets Fit Various Radiator Styles

Not every bracket works with every radiator, and picking the wrong one can leave you with gaps, wobbles, or extra drilling.

Basic fixed brackets are straightforward for standard panel radiators that sit at a set distance from the wall. They're simple to fit and keep the unit tight against the surface when everything lines up.

Adjustable brackets give you a bit of wiggle room after mounting. You can slide them up or down slightly or change how far they stick out. That comes in handy when pipes sit a little higher or lower than expected, or when you move furniture around later and need to nudge the radiator a couple of centimetres.

For taller column or sectional radiators, multi-point brackets spread the support across several fixing holes. They usually include extra lower arms so the weight doesn't pull just from the top. Slim vertical radiators often need a different central-support style with fewer but stronger attachment points.

Think about how your radiator connects to the pipes. Bottom-fed models need clearance underneath, while side-entry ones want space on the sides. Many households start with the brackets that came in the box and later swap them if the distance from the wall feels wrong. Adjustable versions make that swap easier without filling new holes.

In everyday homes you see fixed brackets on flat modern walls and adjustable ones in older properties where floors and walls have settled over time. Matching the bracket type to the radiator early on keeps the finished job looking neat and avoids extra work down the line.

Tips for Choosing a Wall Radiator Bracket That Matches Your Heating Setup

Your heating system sets the tone for what bracket you need. Boiler-fed central heating often runs with heavier radiators that stay on for hours, so the brackets have to hold steady without any give. Lighter electric or gas panel radiators can manage with simpler styles.

Room use matters too. In living rooms where the radiator runs most of the day, a bit of space behind the unit helps air move freely. Kitchens and bathrooms see more moisture, so brackets with a clean, corrosion-resistant finish tend to hold up longer without extra fuss.

Steel brackets show up in plenty of homes because they stay rigid under normal loads. Lighter alloy versions suit tighter spaces or situations where you want to keep overall weight down. Always line up the fixing method with the wall type you already checked — that single step prevents most headaches later.

A practical way forward is to measure your radiator height, width, and pipe positions first, then look for brackets that match those numbers. If your system has thermostatic valves, keep enough clearance so the air can flow around them properly. In homes that mix wall radiators with underfloor heating, the brackets simply add extra warmth where you need it most.

Many people bring the brackets home together with the radiator so they can hold them up against the wall and see the fit in real life. Small differences in hole spacing or depth show up right away and save a return trip to the shop. Taking measurements twice and comparing them against your actual pipe layout makes the whole choice feel straightforward rather than guesswork.

Why Proper Placement of Wall Radiator Brackets Improves Heat Flow in a Room

Heat moves by convection — warm air rises, cooler air gets pulled in from below. The brackets control how much room that cycle has to work.

Set the radiator too high and the warmth heads straight for the ceiling before it has a chance to spread downward. Too low and it sits against the floor or gets blocked by skirting boards. A middle height lets the radiator pull in room air at the bottom and push warmed air out across the space at a comfortable level.

The gap behind the radiator counts as well. Brackets that hold the unit a few centimetres off the wall stop heat from getting trapped against the surface and direct it into the room instead. On outside walls this small gap also cuts down on warmth lost straight through the brickwork.

Even when the brackets sit in the right spot, a sofa pushed right up against the radiator or long curtains hanging in front can kill the airflow. Leaving breathing space around the unit helps the room warm evenly from floor to ceiling without hot spots near the radiator and cold corners farther away.

In open-plan homes, lining up several radiators at similar heights keeps the air moving across the whole area instead of stopping at each wall. You notice the difference on colder days — the temperature feels steadier without having to turn the thermostat up and down all the time.

Where to Position Wall Radiator Brackets for Even Heating Across the Space

Most people place radiators on outside walls, especially under windows where cold air leaks in. The rising warmth meets the draft right at the glass and mixes before it spreads, so you don't feel that chilly zone near the window.

In living rooms a central spot along the longest wall usually reaches seating areas nicely. Bedrooms work better when the radiator sits away from the bed head so you're not sleeping in direct heat. Bathrooms need clearance from water spray but still benefit from an outside wall position.

Avoid corners where two walls meet — air gets stuck there. Keep the radiator clear of door swings and away from furniture that blocks the front. In hallways or stairwells a slightly lower position helps warmth rise through the vertical space.

Before you drill anything, sketch the room on paper and mark possible spots. Check pipe runs, electrical sockets, and furniture layout. A small adjustment at the marking stage often improves circulation without touching the plumbing. Measuring from the floor in each room keeps the heights consistent and the whole house feels more balanced.

How to Maintain Wall Radiator Brackets for Everyday Home Use

Looking after the brackets doesn't take much time but stops small issues from turning into bigger ones.

Each season, give them a quick once-over. Push gently on the sides of the radiator to check for movement. If anything shifts, tighten the screws carefully — just enough to feel firm. Wipe dust from around the base with a dry cloth or soft brush. In damp rooms, glance at the surface for any changes that might affect the grip later.

Once a year, while the heating system is off for servicing or draining, take a closer look at the fixing points. Make sure the anchors still sit tight in the wall and no cracks have opened in the plaster. On adjustable brackets, a drop of suitable lubricant keeps the sliding parts moving smoothly.

Avoid using the radiator as a shelf or drying rack — extra weight stresses the brackets over time. In houses with kids or pets, a simple reminder not to lean or climb on the unit helps keep everything stable.

Many households keep a short note near the heating controls: seasonal visual check, dust wipe, annual fixing review. Following the same steps every year becomes habit and means fewer surprise problems when the cold weather arrives.

Wall Radiator Brackets sit quietly behind the scenes, yet they influence how well the whole heating setup performs day after day. Getting the installation right for your wall, choosing a style that suits the radiator, placing the brackets where air can move freely, and giving them occasional attention all connect together.

The points covered here come from real homes and everyday use. They offer a clear path whether you're fitting new radiators or checking an older system. Reviewing these steps can help you make practical choices that match your rooms and your heating arrangement.

Suppliers who work with these components can usually talk through common configurations and point out options that fit typical setups. A short conversation about your walls and radiator sizes often clarifies the next move without any pressure.

Frequently Asked Questions

How can I tell if my current Wall Radiator Brackets need attention? Any visible movement when you push the radiator, rust around the screws, or an uneven hang usually signals it's time to check the fixings or consider replacements.

Will Wall Radiator Brackets work on plasterboard walls? Yes, with the right cavity anchors or a supporting batten. Solid walls use standard plugs, while lighter boards need the expanding type.

What if the pipes don't line up perfectly with the brackets? Adjustable brackets let you shift position slightly. Careful marking before drilling usually prevents having to move pipes later.

Can I fit Wall Radiator Brackets myself? Plenty of homeowners handle the job with basic tools and a level. Unusual wall construction or very heavy radiators are the times when calling in a qualified installer makes sense.

How often should I check the brackets? A quick look each season plus a more detailed review once a year fits most households and keeps everything working smoothly.

Does bracket position really change how the room heats? Yes — when air flows freely around the radiator, warmth spreads more evenly and the heating system responds to the room without extra effort.

Hydraulic Separator Tank Explained: What It Is, How It Works, and Why Your Heating System Needs One

You've probably seen heating systems that keep turning on and off every few minutes. The boiler fires up, runs for a short time, then shuts down again. Over time this short cycling wears out parts and wastes energy. A hydraulic separator tank is one of those quiet components that helps stop exactly this kind of problem.

It sits between the boiler side and the rest of the pipes in your system. Think of it as a kind of buffer zone for water. It lets the boiler pump run at its own speed while the radiators or underfloor loops pull water at whatever speed they actually need. No fighting, no pressure spikes, just smoother operation.

In this article we'll walk through the questions that come up most often when people first hear about these tanks. We'll look at what they actually are, how they work inside, why so many systems use them, plus real-world tips on installing, sizing, and keeping them running right. Nothing fancy — just practical information from the people who build and support them every day.

What Is a Hydraulic Separator Tank and How Does It Work

At its simplest, a hydraulic separator tank is a short, wide vessel that connects two different water circuits. One side comes from the boiler or heat source. The other side goes out to the rooms you're heating. Inside the tank the water slows down because the space is bigger than the pipes.

When the water slows, a few useful things happen naturally. Air bubbles rise to the top where they can escape through a vent. Heavier bits of dirt drop toward the bottom drain. But the main job is separating the flows.

Imagine two different pumps trying to push water through the same pipe at the same time. Without the tank they would push against each other and the boiler would keep starting and stopping. The tank gives each pump its own space. The primary pump from the boiler can keep circulating at full speed even if the secondary pumps in the rooms are running slower. The extra water just loops back inside the tank instead of forcing the boiler to cycle off.

You don't need any extra controls inside the tank itself. It works by basic physics — gravity, pressure difference, and the larger cross-section. Most units stand upright so air and dirt separate better. The connections are arranged so hot water enters high on one side and cooler return water leaves low on the other. That small natural layering helps keep supply temperatures steady.

In everyday use it feels like the whole system just settles into a calmer rhythm. You hear less pump noise, and the room temperatures stop swinging up and down so much.

How Does a Hydraulic Separator Tank Prevent Short Cycling in Heating Systems

Short cycling is easy to spot. The boiler clicks on, the temperature climbs fast, then it shuts off again before the house has really warmed up. Each start-up uses extra electricity and heats the heat exchanger unevenly. After a few seasons you start seeing more service calls.

The tank fixes this by breaking the direct connection between the two circuits. Suppose the rooms only need a little heat right now. Without separation the boiler would still see almost the full flow demand and hit its target temperature in minutes. With the tank the boiler keeps moving its normal amount of water. The extra flow simply circles back inside the tank while the rooms take only what they need. The boiler stays on longer and runs more steadily.

The water volume inside the tank also acts like a small thermal battery. It stores a bit of heat so sudden changes in demand don't force the boiler to react instantly. That extra few minutes of stable running time adds up over a winter.

Installers notice the difference right away on the gauges. Pressure stays steadier. Return temperatures don't spike or drop wildly. Condensing boilers especially like the consistent return water — they can stay in the sweet spot longer without extra adjustments.

It doesn't remove every on-off cycle (you still need some for normal seasonal changes), but it cuts out the rapid, wasteful ones that come from flow mismatch. That's the part most people feel in their energy bills and in fewer repair visits.

Why Do Heating Systems Use Hydraulic Separator Tanks

Modern buildings often mix different heating methods in the same property. You might have high-temperature radiators upstairs and gentle underfloor heating downstairs. Or a heat pump working together with a backup boiler. Each part likes its own flow speed.

Trying to force everything to run at exactly the same rate gets complicated fast. The hydraulic separator tank gives each section permission to run at its own pace while still sharing the same heat source. It's a simple mechanical solution instead of adding layers of electronic controls.

In bigger buildings several boilers often work together. When only one or two are needed, flow differences appear. The tank keeps each boiler seeing steady conditions so none of them short cycle just because the others are off.

Even in ordinary houses the tank makes retrofits easier. Old pipework and new high-efficiency equipment rarely match perfectly. The separator sits in between and smooths out the differences without ripping out all the old pipes.

It also replaces the old "closely spaced tees" method that used to be common. One tank does the job more cleanly and takes up less room in the mechanical closet. Designers like it because pump sizing becomes simpler and the risk of cavitation drops.

You see the same tank used in systems that switch between heating and cooling. The separation works both ways, so the same component serves year-round in four-pipe setups. That kind of flexibility is why it shows up in so many different projects.

Tips for Installing a Hydraulic Separator Tank

Location matters more than most people expect. Put the tank close to the boiler so the primary pipes stay short and hot water doesn't cool off on the way. Vertical mounting is standard — it helps air and dirt do their natural thing.

Connect the pipes in the right order: primary supply high on one side, primary return low on the opposite side. Secondary supply and return go on the other face. Follow the arrows or standard diagrams. Getting the direction wrong can trap air and make the tank work harder than it should.

Always add isolation valves on all four connections. That way you can service the tank later without emptying the whole system. A couple of thermometers or pressure gauges at the inlets and outlets give you a quick health check every time you walk past.

Don't forget the air vent on top and the drain at the bottom. Hook up an automatic air eliminator if you want hands-off operation. When you first fill the system, open the vent slowly and let the air escape. Then run each pump with all zones open just to watch the flows balance.

A couple of mistakes show up again and again. Using pipes that are too small creates extra pressure drop. Putting secondary pumps in the wrong direction is another common one. And skipping insulation on the tank in a cold plant room lets heat leak away.

Take a few photos when the job is finished and jot down the initial readings. Those notes become useful a few years later when something needs attention.

Which Size of Hydraulic Separator Tank Fits Your Boiler System

Secondary flow matters too. The tank has to handle the total of all the zone pumps at their maximum without creating too much resistance. Manufacturers give flow-range tables with the connection sizes. Most installers pick the next size up if they're close to the edge of a range — it gives a bit of breathing room for future changes.

In buildings with limited ceiling height some tanks can be mounted horizontally, but the vertical ones are still the most common. Leave space above and below for the vents and drains during planning.

The final check always comes from the system designer who runs the full hydraulic calculations. They look at pipe losses, pump curves, and how the controls will behave. Following their recommendation keeps everything stable for years.

When and How to Maintain a Hydraulic Separator Tank

Most people check these tanks once a year during the regular boiler service. It doesn't take long and catches small issues before they grow.

Start by reading the pressure and temperature at the four connections. Compare them to the numbers you wrote down at installation. Big changes usually mean air, sludge, or a pump setting that drifted.

Open the air vent for a few seconds and see what comes out. If it's just air, fine. If water spits or nothing happens, the vent might need cleaning. Then drain a small cup from the bottom port and look at the water. In a well-treated system it should run clear. Cloudy or sandy water tells you it's time for a deeper flush.

Every three to five years, depending on water quality, isolate the tank, drain it, and rinse the inside. If your model has removable baffles, take them out and give them a good clean. Check the gaskets while you're in there — replace any that look flattened or cracked.

While the tank is open, look at the surrounding pipes for any corrosion or damaged insulation. Those small problems can slowly affect the tank's performance.

Listen during normal running too. Gurgling or sudden hammering near the tank usually means air is getting in somewhere. Fix it early and you avoid bigger headaches later.

Write down each visit — date, what you saw, what you did. That simple log helps everyone who works on the system in the future.

A hydraulic separator tank isn't the flashiest part of a heating system, but it does a lot of heavy lifting behind the scenes. It keeps flows separated, reduces short cycling, steadies temperatures, and makes installation and maintenance simpler for everyone involved.

The six areas we covered — what it is, how it works, why systems need it, installation tips, sizing, and basic care — give you a solid picture of where it fits in real life. Whether you're planning a new build or looking at an older system, these principles help you understand what's happening and what to ask for.

If you're working on a project right now and want drawings, sizing help, or just a second opinion on layout, the manufacturer support teams are there for exactly that. Many of them also have clear installation guides that walk through the steps in plain language.

Keeping these ideas in mind usually leads to systems that run quieter, use energy more steadily, and need fewer surprise repairs over the years. That's the practical value you'll notice season after season.

Meta Description: Discover why global buyers choose Chinese decoupling tank manufacturers for quality, customization, and competitive pricing.

Keywords: China decoupling tank manufacturer, decoupling tank supplier, hydraulic separator China



China has become the world's leading source for industrial hardware components, and decoupling tanks are no exception. Buyers from Europe, North America, and Australia increasingly turn to Chinese manufacturers not just for lower prices, but for proven quality, fast production, and flexible customization.

Competitive Pricing Without Compromising Quality

China's mature manufacturing ecosystem means lower raw material costs, efficient production lines, and economies of scale — all of which translate into better pricing for buyers. Many Chinese factories operate to ISO standards and hold CE certifications, ensuring their products meet international quality benchmarks.

Wide Range of Customization Options

Chinese decoupling tank manufacturers typically offer extensive OEM and ODM capabilities. Whether you need non-standard port sizes, specific pressure ratings, unique coatings, or private-label packaging, most factories can accommodate detailed specifications.

Established Export Experience

Leading manufacturers in regions like Zhejiang and Guangdong have decades of export experience. They understand international shipping requirements, customs documentation, and compliance standards for different markets, making the procurement process smooth and reliable.

Fast Production and Scalable Capacity

With advanced equipment and large production floors, Chinese manufacturers can handle both small trial orders and large-scale contracts. This flexibility is ideal for distributors and wholesalers who need to scale supply as demand grows.

Why JINYI?

Yuhuan JINYI Hardware Co., Ltd. has been manufacturing high-quality hardware since 1995. Our decoupling tanks are exported to Europe and beyond, backed by strict quality control and full customization services. Contact us today for a quote.

Visit our official website: www.yh-jinyi.com

Contact us to discuss samples, drawings, or OEM cooperation

Why a Shower Bases Support Frame Deserves More Attention Than You Think

A small piece that saves big headaches

A shower base support frame is not glamorous. It does not make glossy catalog covers or headline product launches. Yet it quietly decides whether a shower feels solid underfoot or creaks the first time someone steps in. Install the right frame, and the finished shower behaves predictably for years. Skip that step or get it wrong, and repairs, leaks, and unhappy customers show up sooner than anyone expects.

What a shower base support frame actually does

At its broadest, a support frame does three things:

1. Provide stable support so the base does not flex under load.
2. Distribute load across the substrate to reduce point stresses on tiles, mortar beds, and the waterproofing membrane.
3. Lock in geometry, keeping the intended slope to the drain and maintaining the long-term performance of the drainage system.

A support frame turns a thin, sometimes flexible base into a predictable platform. It controls how forces travel through the floor assembly and how the base reacts to the inevitable small movements and thermal cycles that every building experiences.

Put another way: a support frame is an insurance policy against unforeseen movement. It's a low-tech item that prevents high-cost consequences.

Why stability matters more than you might assume

People use showers multiple times daily. They step, they kneel to wash a child, someone may move a heavy shampoo bottle across the base. Those everyday actions create loads that accumulate and explore any weakness in the installation.

When a base flexes:

• Tile adhesives and grout experience shear and fatigue, which leads to cracking and delamination over time.
• Drain geometry changes slightly, creating low spots where water pools instead of draining.
• Waterproofing membranes can be stressed at fixings or seams, increasing the risk of leaks.
• Noise becomes an issue as planking or hollow spaces amplify small movements into audible creaks.

These symptoms show up as callbacks: tile repairs, re-grouting, resealing, and investigations into moisture. From a project budget perspective, investing a little in proper framing saves more than the initial cost of rework.

Different frame types and where each fits

Not all frames are created equally. Picking the right style depends on the base material, the subfloor, the service access needs, and the traffic the shower will see.

Adjustable metal frames

Features:

• Threaded legs or shims for fine leveling.
• Good for uneven substrates.
• Strong and durable.

Use when:

• The substrate varies in height.
• You need precise leveling without shimming dozens of spots.
• The base is medium to heavy weight (stone resin, composite).

Preformed foam or polymer supports

Features:

• Lightweight and easy to cut on-site.
• Fast to install, often used with factory-made acrylic bases.

Use when:

• Speed is important.
• Substrate is fairly flat and not subject to large temperature swings.
• Budget and quick turnaround matter.

Welded or custom metal frames

Features:

• Custom dimensions and shapes for large-format or heavy stone bases.
• Allow integration with drains and access panels.

Use when:

• Commercial or high-traffic installations require extra robustness.
• Stone or thick solid-surface bases are used.
• Access to plumbing needs a purposeful hatch or trap cover.

Pedestal or modular raised systems

Features:

• Provide clearance for plumbing below the base.
• Allow easy access for servicing without pulling tile.

Use when:

• Raised floors or service cavities are required.
• Building design prioritizes concealed serviceability.

Choosing a frame type is a practical match-making exercise: list your constraints, then select the frame that solves them with the least compromise.

How to plan installation so the frame performs well

Plan the installation like a small engineering job. Small mistakes at this stage cause big ripple effects later.

1. Confirm the substrate condition

Measure flatness and identify where the substrate deviates from level. Fix large hollows or ridges before frame placement. A few millimeters of high or low spots matter.

2. Coordinate with the drain layout early

The frame must not obstruct the drain trap or the maintenance access. If the drain needs adjustment, do it before tiling or screw-fixing the frame.

3. Allow service clearances

Install the frame where vents, drains, or removable panels are reachable. Crowded plant rooms—or tiny bathrooms—make future service expensive.

4. Avoid placing elbows and disruptions right at the frame inlet/outlet

Turbulence and chaotic flows near the drain can defeat careful grading. Keep piping straight and accessible for inspection.

5. Use non-compressible support where recommended

Some installers try to use soft mortars as a support medium; that can compress over time. Prefer the frame's legs and rigid structural elements as the designed supports.

6. Provide an access panel or removable cover when valves or traps are expected to be checked

Don't force a tiler to break tile to reach a clog.

These steps are routine on well-run projects but get skipped when schedule pressure or cost-cutting squeezes the build. Schedule them into your project plan.

Maintenance: what to inspect and when

A support frame is mostly maintenance-light, but a few checks every year or two prevent surprises.

Routine checks:

• Inspect the base perimeter for grout gaps or tile movement.
• Ensure drain performance remains brisk; slow drainage can indicate a loss of slope or debris buildup.
• If the frame offers access, remove the hatch and inspect for settled debris or signs of corrosion.
• Check for signs of movement at fasteners or leveling points—if they are loose, tighten according to the manufacturer's guidance.

If your site experiences significant temperature swings, inspect twice a year. If it's a high-traffic public facility, increase the cadence.

Procurement checklist — what to ask suppliers and why

When buying frames, keep the conversation practical. Ask suppliers for:

• Compatibility statement with the shower base model you plan to use. A mismatch is a common cause of failures.
• Adjustment range of legs or shims (minimum and maximum) so you can accommodate the expected substrate variance.
• Material and finish details, including corrosion protection and coatings.
• Access features: size of removable panels, trap access, and vent points.
• Pressure or load ratings when dealing with heavy stone or public facilities.
• Installation guide including recommended torque values and any recommended adhesives or mortars.
• Lead times and delivery format—is the frame skidded, sectional, or welded?
• Warranty and service terms, and whether the supplier provides start-up or commissioning support.

Make all bidders respond to the same checklist so you can compare apples to apples.

Common mistakes and how to avoid them

Having seen enough projects, a short list of recurring traps helps teams avoid them.

Mistake 1: trusting a flat floor without measuring

Sometimes laborers assume a floor is flat. Measure it. If it isn't flat, rely on adjustable frames, not shims stuck in place.

Mistake 2: burying access under tile

Design so important access points remain reachable. If the trap or cleanout is inaccessible, every small clog becomes a demolition job.

Mistake 3: undersizing the frame for future loads

Know whether the base or floor may later support heavier finishes or a seat. A little margin in structural capacity avoids later retrofits.

Mistake 4: ignoring water chemistry and corrosion risk

Salt or aggressive water can degrade fasteners and frames. Match materials to the environment—or plan for sacrificial parts.

Mistake 5: over-tightening fasteners

This crushes foams or warps thin bases. Follow the manufacturer's recommended torque values.

Avoid these and much of the warranty work vanishes.

Case study — a renovation that stayed on budget thanks to the right frame

Consider a mid-scale renovation where the owner wanted a new low-profile composite base but the existing concrete subfloor had uneven areas and a slight crown near the old drain. The contractor could have ripped out the substrate and poured a new screed—a slow, dusty, and costly path. Instead they chose an adjustable metal frame with threaded leveling feet.

Process highlights:

• The frame was sized with extra adjustment range to handle the crown.
• The team installed the frame, aligned the drain collar, and confirmed slope with a simple water test.
• A removable access panel over the trap allowed the plumber to align waste without cutting tile.
• The job finished on schedule and cost less than substrate replacement. After six months the owner reported no pooling and no drafts under the threshold.

That outcome is common: frames solve tricky site conditions sensibly when used correctly.

Design tips for acoustic and thermal performance

Shower bases can be points of heat loss and sound transmission. Good frame choice helps both.

• Acoustic: Add soft pads or neoprene isolators between metal frame elements and structural substrates to damp vibrations and reduce creaks.
• Thermal: For heated floors or cold climates, consider frames with thermal breaks or insulation pads to avoid creating a cold bridge that chills the tiles.
• Composite bases: Pair with frames that allow a thin layer of insulating foam underneath without compressing it under load.

These small design choices improve occupant comfort and perceived quality.

Materials and finishes — make choices based on conditions, not habit

Common materials include galvanized steel, stainless steel, or corrosion-resistant painted carbon steel. The right choice depends on exposure.

• Stainless steel for wet, coastal, or chemically aggressive environments.
• Galvanized or coated steel for standard interior baths where water contact is limited to occasional splash.
• Polymer-based supports for quick commercial fit-outs or where weight and speed matter.

Ask suppliers for life-cycle guidance rather than marketing slogans. A real-world recommendation will consider service intervals and local conditions.

How to document and hand over installations to users and maintenance teams

A good handover reduces calls. Provide the building owner or facilities manager with:

• A short installation record including the frame model, adjustment positions, and any non-standard details.
• Photos showing how the access panels open and where the drain trap is located.
• A simple maintenance checklist (annual drain test, visual perimeter check).
• The supplier's contact and any spare-part numbers for common wear items.

This little folder avoids confusion later and helps maintenance teams act quickly.

Frequently asked questions (practical answers)

Q: Can I use mortar alone under a base instead of a frame?

A: Mortar beds work but rely on excellent substrate preparation and consistent compaction. A frame adds predictable mechanical support and simplifies leveling, especially on uneven floors.

Q: Will a frame interfere with underfloor heating?

A: Not if you coordinate locations. Some frames include insulation or thermal breaks to reduce heat loss; always check compatibility with your heating plans.

Q: Do frames require special fasteners?

A: Typically the manufacturer specifies fastener types and torque values. Use those, and avoid generic on-site substitutions without approval.

Q: How do I clean under a framed base?

A: If the design includes access panels or removable covers, cleaning is straightforward. If not, consider adding access provisions as part of the installation.

Quick reference for procurement and installation

• Measure substrate flatness and record deviations.
• Choose a frame suitable for the base material and expected live loads.
• Confirm drain alignment and include an access panel over the trap.
• Specify material and finish appropriate for the environment.
• Ensure adjustable range meets site variation with margin.
• Follow manufacturer torque and fixing recommendations.
• Commission with a drain alignment and water test before tiling.
• Provide handover documents and a short maintenance checklist to the client.

Small care, steady results

A Shower Bases Support Frame is one of those low-profile decisions that make building life smoother. It doesn't grab attention in the sales brochure, but it saves time, money, and reputation when projects go into service. Treat it like part of the structural system it is—specify it early, install it carefully, and document it for the team that will care for the building daily. The result is a shower that behaves as intended, not one that demands attention.

Why a Hydraulic Separator Tank Actually Makes Plant Life Easier

Opening thought — small device, noticeable difference

You don't notice a hydraulic separator tank until the day you add one — and then you notice everything it fixes. Pumps stop fighting each other. Room temperatures stop swinging. Control valves stop hunting. That's not magic; it's hydraulics behaving better because someone gave the system a small, calm place to sort itself out.

I've seen this play out more than once: a campus with constant zone complaints, an office tower where pumps cycled oddly every time a boiler fired, a retrofit that suddenly stopped spiking differential pressures. In each case a separator smoothed things out. The device is simple. The benefits are practical. Let's talk about why, where, and how to use one without getting lost in theory.

What the separator actually does — plain language, no diagrams required

Think of the separator as a local buffer. On one side you have the plant — boilers or chillers and their pumps. On the other side you have the building distribution — pumps, zones, and valves. If those two sides are tied too tightly, a change on one side ripples through the other. The separator gives the water a quiet pool where flows can mix without forcing every pump to match every other pump's behavior.

What this buys you:

• Pumps run against more predictable flow conditions.
• Short-circuiting between circuits is reduced.
• Controls measure and react to real load changes, not hydraulic noise.
• Small amounts of air and debris can settle out in slower zones designed for that purpose.

It's not a cure-all. It's a practical fix for a very common class of problems.

How that smoothing helps day-to-day operations

In the plant I used to service, operators hated one thing above all: nuisance alarms at odd hours. After a separator was installed, the alarm count dropped. Why? Because the separator reduced transient shocks and pressure swings that had been tripping sensors.

On the shop floor that means fewer emergency callouts, fewer motor starts and stops, and less time chasing false problems. For an operator, a calmer control panel is a better night's sleep. For the owner, calmer operation means fewer repairs and longer pump life. For engineers, it means control loops that actually stabilize.

Projects that commonly benefit — where you should look first

Not every system needs one. But here are the situations where a separator often becomes the sensible choice:

• Systems with multiple pumps working in parallel or in separate loops.
• Plants where variable-speed drives change flow frequently.
• Multi-zone buildings with very different zone dynamics (conference rooms versus storage areas, for example).
• Retrofitted systems where new pumps or zones were added to an existing piping layout.
• Process systems where sudden starts or stops create frequent transients.

If you find yourself tuning controls to chase hydraulic problems, a separator is worth evaluating.

Where to put it — practical installation advice that saves headaches

Location matters more than you might think. The common rule is: put it between the primary plant and the building distribution, where you can access it. But a few extra points make installation less painful later:

• Give service clearance. Don't squeeze the unit into a tight corner where no one can remove covers or open drains.
• Keep air vents and sludge drains accessible. These ports need attention during startup and periodic maintenance.
• Avoid putting elbows and complex piping right next to the separator inlet/outlet; turbulence defeats part of the calming effect.
• Provide a few isolation valves so you can take the separator offline for cleaning without shutting the whole plant.
• Coordinate control wiring and sensors neatly—temperature and flow probes work better when not heat-biased by nearby equipment.

A tidy installation saves time and reduces the chance of commissioning errors.

Choosing size and type — not mystical, just deliberate

Sizing is about matching expected flows and leaving a little headroom for change. In practice that means checking the number and behavior of pumps and considering growth. If you're planning future expansion, allow a margin rather than buying exactly what the current design calls for.

Material choice follows environment: stainless where corrosion is a risk, coated carbon steel where budget matters and water chemistry is controlled. Also look for features that make life easier: removable covers, inspection ports, integrated vents and drains. These don't sound sexy, but they cut service time dramatically.

Ask about the unit's pressure drop at your nominal flow. Excess loss forces pumps to work harder. A separator should calm the hydraulics, not introduce a new parasitic head loss problem.

Commissioning — the part where projects succeed or stall

Installation is half the job. Commissioning is where you prove it. A short checklist at startup will save debate later:

• Check all isolation valves and vents are in the correct position.
• Verify that instrumentation is reading sensible baseline values before you start load cycling.
• Run a few typical operating sequences and watch for valve hunting or pump interaction.
• Purge air slowly; don't try to rush bleeding at full flow.
• Record baseline temperatures and pressures for future troubleshooting.

A proper initial flush and venting often avoids weeks of weird behavior that people otherwise blame on controls.

Maintenance and what to look for in service life

Maintenance is low effort if designed for it. Inspect vents and sludge traps periodically. If your system carries particulate, adopt a schedule to drain settled material before it clogs drains or re-entrains into the system.

Watch for signs that the separator is undersized or misapplied: persistent temperature swings, pumps cycling unexpectedly, or unusual vibration in pumps downstream. These usually mean the hydraulic buffering is insufficient for the load profile.

Make the unit part of your routine checks. The few minutes spent inspecting access ports pay off big later.

Real-world pitfalls I've seen — and how to avoid them

• Undersizing: people choose a unit that fits the mechanical room but can't handle peak flows. Result: continued problems and a second retrofit. Fix: check flows realistically, include occasional peak conditions, and size with margin.
• Bad piping near the inlet: elbows and back-to-back fittings create turbulence. Fix: plan straight runs and gentle transitions.
• Inaccessible vents/drains: install the unit where techs can reach ports comfortably. Fix: relocate or add extended valves/handles.
• Ignoring water quality: if the system has debris, separators get dirty fast. Fix: install upstream strainers or schedule more frequent cleanouts.

These are avoidable with a bit of forethought.

Procurement checklist — make supplier quotes comparable

When you request proposals, ask for these items explicitly:

• Recommended flow range and a note on expected pressure drop.
• Material and coating specification for the shell and internals.
• Details about access: inspection port size, cover removal method.
• Built-in air vent and sludge drain details.
• Any available P&ID and CAD files for coordination.
• Guidance on expected maintenance actions and service intervals.
• Lead time and delivery options.

A clear procurement package reduces surprises at installation.

A short comeback story — one retrofit, big calm

A university plant had three boilers and dozens of building pumps. They had odd temperature swings and nuisance alarms that everyone assumed were control bugs. After some analysis they installed a properly sized separator with a few vents and a one-time flush. Commissioning took a morning. The result: far fewer alarms, stable temperatures across lecture halls, and the operations team stopped chasing phantom failures at night. The hardware was modest; the operational benefit was immediate.

What you can do next

If your plant has more than one pump or frequent control tuning chores, add a separator to your shortlist. Start by collecting actual pump curves and nominal flows; then talk to suppliers about units that match those flows with some headroom. Prioritize access and vents. Plan commissioning with a short checklist and a controlled purge. And finally, make the separator part of your routine maintenance plan.

It's a small part of the plant, but it makes daily life noticeably smoother. That's why engineers and operators who've lived through systems without one tend to keep them when they rebuild.

In today's plumbing industry, reliability, efficiency, and long-term durability are no longer optional-they are essential. Whether for residential buildings, commercial projects, or industrial plumbing systems, the quality of installation hardware plays a critical role in system performance and lifecycle cost.

As a professional plumbing hardware manufacturer in China, JINYI (Yuhuan Jinyi Hardware Co., Ltd.) specializes in supplying cost-effective, customizable metal components that support modern plumbing and water systems worldwide.

The Growing Demand for High-Quality Plumbing Hardware

With increasing standards for building safety, water efficiency, and installation speed, plumbing contractors and brands are paying more attention to hidden components—such as brackets, clamps, and supports—that ensure system stability.

Poor-quality plumbing accessories can lead to:

• Pipe vibration and noise
• System leakage and maintenance issues
• Higher installation and labor costs
• Reduced lifespan of water systems

That's why sourcing from a reliable plumbing hardware factory has become a strategic decision for many brands and wholesalers.

What Plumbing Products Can JINYI Manufacture?

As an experienced OEM & ODM manufacturer, JINYI focuses on metal installation hardware for plumbing and heating systems, including:

• Pipe clamps & pipe brackets (for copper, PEX, multilayer, and steel pipes)
• Water meter brackets & supports
• Manifold brackets and stainless steel manifold supports
• Valve brackets and mounting frames
• Floor drains & shower channel drain components
• Shower base support frames & structural brackets
• Customized metal brackets based on drawings or samples

All products are designed to meet the practical needs of installers, ensuring easy mounting, strong load capacity, and long-term corrosion resistance.

Why Global Buyers Choose JINYI as Their Plumbing Hardware Supplier

1. Manufacturer Direct -Better Cost Control

As a factory-based supplier, JINYI offers competitive pricing without compromising on quality—ideal for wholesalers, distributors, and brands seeking stable long-term supply.

2. Strong Customization Capability

We support OEM and ODM projects, including:

• Material selection (carbon steel, stainless steel, galvanized steel)
• Surface treatments (zinc plating, powder coating, polishing)
• Logo marking and private labeling
• Custom packaging for retail or project use

3. Quality Focused on Real Installation Scenarios

Our products are developed with real plumbing applications in mind, ensuring:

• High load-bearing strength
• Precise dimensions for easy installation
• Consistent quality across mass production

4. Experience in European & North American Markets

JINYI has experience supplying plumbing hardware to customers in Europe and North America, understanding market expectations for quality, documentation, and communication.

A Reliable Partner for Plumbing Brands and Projects

Whether you are a plumbing brand looking to expand your product range, a distributor sourcing reliable accessories, or an engineering company seeking stable installation hardware, JINYI provides practical, scalable solutions.

We don't just manufacture metal parts-we help our partners improve supply chain efficiency and product competitiveness in the plumbing market.

Looking for a Trusted Plumbing Hardware Manufacturer?

If you are sourcing plumbing brackets, clamps, supports, or custom metal components, JINYI is ready to support your next project.

Visit our official website: www.yh-jinyi.com

Contact us to discuss samples, drawings, or OEM cooperation

How to Pick, Install, and Maintain Bathroom Brackets — A Practical Field Guide

Brackets look small. Their problems grow big.

Get the wrong bracket and you get leaks, noise, and repeat service calls. Choose the right one and a plumbing run stays quiet and maintenance-free for years.

Why a bracket matters

You stack a system from pipes, valves, and equipment. Brackets decide how loads move through that stack. A poor bracket lets motion spread. Motion becomes vibration. Vibration loosens bolts. Loose bolts lead to leaks. Leaks lead to callbacks.

A good support does five things:

1. Carry the load without bending.
2. Allow thermal motion where needed.
3. Isolate vibration where required.
4. Keep valves and instruments accessible.
5. Resist the local environment — moisture, chemicals, or salt.

If a bracket does those well, the piping system behaves predictably. That reduces downtime and cost.

Before you buy: five essential numbers

Don’t guess. Measure and document.

1. Static load — the weight of pipe, fluid, valves, and attachments. Calculate the filled weight.
2. Dynamic allowance — pumps, compressors, and flow surges create extra forces. Add 25–40% for general cases. Use higher margins where vibration is known.
3. Span length — the distance between supports. This controls deflection and bending.
4. Substrate type — concrete, steel beam, pre-cast, or thin partition wall. Anchors differ by substrate.
5. Environment — interior dry room, washdown area, rooftop, or corrosive plant. This decides material and finish.

A small table on site saves big money later. Fill it before you call the supplier.

Materials: pick what fits the environment

Material determines life and maintenance.

• Carbon steel + coating — cheap and strong for dry, indoor areas. Needs good surface prep and coating.
• Galvanized steel — for mild outdoor exposure. Zinc helps, but scratched areas will corrode.
• Aluminum — light but softer; not ideal for heavy loads. Use only for light fixtures or where weight matters.

If you can’t access the bracket easily later, favor stainless. Cost in exchange for peace of mind often pays back.

Design features that save time on site

Tiny details matter. They save hours.

• Slotted holes instead of fixed holes. They allow field alignment without redrilling.
• Reinforced bearing plates where bolts clamp. Thin plates bow.
• Split saddles or open clamps let you place the pipe without flipping the whole manifold.
• Integrated isolation pads to reduce vibration.
• Service clearance built in so valves and actuators can be removed without disassembling the bracket.

Ask for these features on your drawing. If they won't include them, ask why.

Anchors and fasteners: match to the substrate

One anchor type does not fit all.

• Concrete: mechanical expansion anchors for static loads. Chemical anchors for high dynamic loads.
• Steel beam: through bolts with washers and locknuts. Through-bolting spreads the load best.
• Thin sheet or hollow block: use backing plates or sleeve anchors that spread force.
• Precast: confirm embedment depth and use proper inserts or adhesive anchors.

Always specify torque values. Record them at handover. Hand-tight is not quality control.

Support spacing and geometry

How far apart you place supports affects deflection and fatigue.

• Near elbows, tees, and valves: place supports closer. Local bending moments spike here.
• Avoid single-point suspension for long runs. Use at least two or three supports to distribute load.

If you must span long distances, add a carrier beam or truss to move the load to the structure.

Thermal expansion: allow motion, don't fight it

Pipes expand and contract. If you clamp them rigidly, stress builds up and finds the weakest point — usually a flange or weld.

Two practical approaches:

• Sliding supports — use low-friction pads so the pipe can move axially.
• Guided supports + fixed anchors — fix one point and allow guided sliding elsewhere. That controls where stress concentrates.

Draw a thermal movement map for all lines longer than a few meters. Mark fixed points and sliding areas on the as-built.

Vibration control: small fixes, big results

Vibration causes fatigue and noise. It also loosens screws and nuts.

• Use neoprene or elastomer pads under bearing plates. Cheap and effective.
• Install flexible connectors on pump lines to break vibration paths.
• Consider spring isolators for heavy vibrating assemblies.

Don't isolate everything. You still need positive location in at least two axes. Isolation reduces transmission; it does not remove the need for alignment.

Coating and surface protection

Finish matters for life and appearance.

• Powder coating — durable and neat for indoor brackets.
• Hot-dip galvanizing — thicker zinc layer, good for outdoor exposure.
• Epoxy or marine coatings — for aggressive chemical or coastal sites.

Surface prep is vital. Poor cleaning before coating leads to early failure. If the job is spot-painted, expect trouble sooner.

Common installation mistakes and how to avoid them

These are recurring problems on projects. Prevent them early.

1. Wrong anchor type — use the anchor appropriate for the substrate and dynamic loading.
2. No thermal plan — fails happen when thermal movement is not allowed.
3. Blocking access — design must preserve valve and instrument access.
4. Thin plates in high-load spots — add ribs or thicker plates where loads concentrate.
5. Mismatched holes — dry-fit before drilling. Slotted holes help.

Mock-up the assembly with straps or clamps before drilling or welding. It saves rework.

Commissioning checklist you can use

Make installers sign this. Keep the record.

• Confirm load calculations with installed assemblies.
• Torque all anchors to specified values and record them.
• Verify level and alignment within tolerance.
• Verify sliding supports move freely.
• Check isolation pads are seated correctly.
• Inspect coating for damage.
• Confirm valves and gauges are accessible.

A signed checklist stops "it looks okay" from becoming a warranty problem.

Inspection and maintenance schedule

Routine checks stop failure. Use a simple calendar.

• Weekly: visual check for loose bolts, heavy corrosion, or visible movement.
• Quarterly: torque test critical bolts, inspect isolation pads for hardness or cracking.
• Annually: remove and inspect welds and plates, check coating condition, and measure any deformation.

Record each check. Trends show problems before they break.

When to repair and when to replace

Repair when surface rust or minor deformation is present. Replace when:

• Structural plate has permanent deformation.
• Weld cracks are visible.
• Coating has failed to the point of deep corrosion.
• Bolts repeatedly loosen even after proper torque — indicates fatigue.

Plan replacements during low-use windows. Prefabricate replacement pieces to cut shutdown time.

Procurement checklist for buyers

When you order brackets, include these in the purchase specs:

• Exact pipe diameters and weights.
• Expected dynamic allowances and safety factors.
• Base material of substrate and its characteristics.
• Coating type, thickness, and prep standard.
• Required adjustability (slots, removable clamps).
• Delivery schedule and spare parts availability.
• Test and inspection documentation required on delivery.

Ask for fabrication drawings and a small sample if the order is large.

Field tips installers swear by

• Dry-fit the bracket before cutting holes. Temporary straps show real fit.
• Use a torque wrench and record the numbers. It's part of QA.
• Label spare gaskets, bolts and pads by location to simplify later fixes.
• Keep a small field kit of spare bolts, one gasket set and a vibration pad — saves hours.

These small moves reduce calls and keep the crew moving.

Retrofit traps and how to avoid them

Old buildings hide surprises.

• Don't use old anchor holes without testing their pull-out strength.
• Don't assume old runs had thermal allowances. They often didn't.
• Check for embedded utilities before drilling. Coordination with other trades prevents costly mistakes.

When retrofitting, use temporary supports and a clear isolation plan.

Small innovations that pay off

Add these and you cut work later:

• Leveling studs so the bracket comes in exactly at height without shims.
• Wear indicator slots machined into plates — you see when material loss approaches limit.
• Quick-release clamps for maintenance without removing anchors.

These features cost little to add at fabrication but save labor on site.

Safety and compliance basics

Follow local codes and standards.

• Use certified anchors rated for loads.
• Use traceable materials with mill certificates if required.
• Provide installation and commissioning records.
• Keep clearances per code for valves and emergency equipment.

Good documentation protects everyone.

Case study

A mid-sized office building had repeated valve leaks and noise. The cause: thin, poorly coated brackets and no sliding supports. Fix: replaced plates with reinforced units, added sliding pads and neoprene isolation at pump connections. Result: noise dropped, leaks stopped, maintenance visits declined. Payback came inline with typical service savings.

Small change. Big difference.

Checklist before signoff

1. Loads verified and recorded.
2. Anchors matched to substrate and torqued; records kept.
3. Thermal movement planned and tested.
4. Vibration isolation installed where specified.
5. Service access confirmed.
6. Coating inspected and touched up.
7. Maintenance schedule handed over.

If all boxes are checked, the bracket will behave. If not, expect a call.

Brackets are small. Their performance is not. Spend a little time on load calculations. Pick the right material. Allow for movement. Fasten correctly. Inspect regularly. Do these and a bracket becomes one less thing to worry about.

How a Manifold Bracket Really Helps HVAC Systems Stay Stable — A Practical Guide

When people design HVAC systems they often spend most time on pumps, valves and controllers. That's natural. But if the supporting parts aren't right, all that careful equipment selection can be undone by vibration, misalignment, leaks or frequent maintenance. A small steel support — the manifold bracket — is one of those quiet parts that does a lot of heavy lifting. Pick the right design, install it carefully and maintain it, and the whole system runs smoother for years. Ignore it, and you get headaches: noisy operation, more pipe stress, more callbacks.

Why the manifold support matters more than its size suggests

At first glance a bracket is just a bracket. In practice it controls how forces move through the piping network. Consider these simple outcomes when the support is wrong:

• Pipes vibrate and fasteners loosen.
• Joints and valve seats wear faster.
• Thermal expansion causes unexpected stresses.
• Access for inspection and repair becomes a problem.

All of those raise maintenance cost and risk. A smart support design spreads loads, controls motion and simplifies inspection. In short: good support turns variable loads into predictable behavior.

The practical parameters you must check before choosing a bracket

Don't treat the spec sheet like a shopping list. Apply it to the job:

1. Actual load (kg / lb) — include manifold weight + water or refrigerant volume. If the manifold holds heavy valves or filters, add their mass.
2. Dynamic load factors — pumps cause pressure spikes and vibration; motors and compressors add intermittent forces. Add a safety margin.
3. Mounting substrate — will you bolt to concrete, steel frame, or a stud wall? Anchor choice changes allowable load.
4. Environment — indoor dry room or rooftop exposed to weather? Corrosion risk changes material choice.
5. Service access — will techs need to remove the manifold without dismantling a wall? Consider quick-release or modular attachments.

A rule of thumb I use on site: calculate static weight, then add 25–40% to cover dynamic effects unless you've measured vibration levels. If the site is seismic or highly industrial, go higher.

Material choices: what works where

Materials are not just about corrosion resistance. They influence stiffness, weldability and price.

• Carbon steel with coating — widely used indoors. Economical, strong, easy to weld. Needs finishing (paint, powdercoat) for moisture zones.
• Galvanized steel — good for mild outdoor exposure. Zinc layer helps but can wear if scratched.
• Stainless steel — for humid, salty or chemical environments. More expensive but reduces replacement cycles and maintenance.
• Aluminum — lightweight; used in some lightweight frames but less common for heavy manifolds because it's softer and less stiff.

Pick stainless where access for repair is difficult or the bracket will see salt spray or corrosive condensate. For screens and plant rooms we usually use painted carbon steel unless specified otherwise.

Design features that actually make installation faster and more reliable

Not all brackets are equally easy to work with. Look for these practical design features:

• Adjustable slots (not just fixed holes). Slotted holes allow small alignment changes in the field.
• Reinforced mounting plate where loads concentrate — prevents deformation under heavy weight.
• Removable clamps or split saddles so you can mount piping without turning the manifold assembly upside down.
• Integrated vibration isolators (rubber pads, neoprene) if vibration is a concern — reduces transmission to structure.
• Service clearance built in — leave space for valve actuators, filters and gauges.

If a bracket forces you to do awkward welds or block access to a flanged joint, it's the wrong bracket — even if the steel is thicker.

Fasteners and anchoring — options that survive real life

Fastener choice depends on substrate and load. Don't default to the same bolt for everything.

• Concrete anchors — use expansion anchors for static loads, chemical anchors for higher loads or vibration.
• Through-bolting into steel beams is robust — pair with washers and locknuts.
• Threaded inserts in precast panels can work but check pull-out ratings.
• Sleeved anchors degrade in cycles — prefer mechanical anchors rated for dynamic loading.

Torque settings matter. A common field failure is a "hand-tight" bolt that later loosens. Specify torque values and document them during commissioning.

Spacing and support points — the installation geometry that controls bending

How far apart should you put supports? It depends on pipe stiffness and load.

• Shorter spans mean less deflection but more anchors.
• Longer spans save anchors but increase bending and vibration.

General approach:

• Near elbows, valves, or branching points, place supports closer — these locations see higher local moments.

Avoid one-point suspension of a long manifold; use two or three supports to distribute loads and avoid a cantilever effect.

Thermal expansion: allow for motion without stress

Piping expands and contracts with temperature. Brackets must either permit movement or deliberately restrain it with anchor points and expansion loops.

Two practical methods:

1. Sliding supports — support the pipe but allow axial movement. Use sleeves or low-friction pads.
2. Guided supports — permit movement in one direction while restricting others.

Never clamp a heated run rigidly every few meters. That creates stress concentrations at the anchors or at the next fixed point (and leaks follow).

Vibration control: small measures, big impact

Vibration transmits forces to the building and to adjacent equipment. Simple fixes reduce wear:

• Add rubber pads or neoprene washers under bracket plates.
• Use spring isolators for heavy, vibrating manifolds.
• Install flexible connectors (hose loops) on pump connections to isolate pump vibration from the manifold.

Don't over-isolate: you still need positive location in at least two axes; isolates should be designed, not guessed.

Surface protection and finish: practical choices

Surface finishes matter less for internal dry rooms and more for service life in wet or outdoor locations.

• Powder coating gives a durable finish for indoor use and looks good.
• Hot-dip galvanizing provides thicker corrosion resistance for exterior mounting.
• Epoxy coatings resist chemical exposure and are used in many industrial facilities.

If painting on site, specify surface prep (blast or brush) and primer type to avoid premature flaking. Coating is only as good as surface preparation.

Installation mistakes I see on site (and how to avoid them)

Here are the common errors and straightforward fixes:

• Mistake: Bracket holes don't align, so pipe is forced into position.
• Fix: Use slotted brackets or shims; re-check layout before drilling.

• Mistake: Anchors selected for static loads only; vibration loosens them.
• Fix: Choose anchors rated for dynamic loading and add lock washers.

• Mistake: Zero allowance for thermal movement.
• Fix: Review thermal expansion calculations and add sliding supports.

• Mistake: Brackets block access to valves and gauges.
• Fix: Mock up assemblies or use CAD to verify service access.

• Mistake: Using a thinner plate to "save cost" — it bows under load.
• Fix: Use reinforced plates or ribs where loads are concentrated.

A practical tip: before cutting or drilling any structure, mock up the manifold with straps or temporary supports to confirm clearances.

Commissioning checklist that actually gets used

A one-page commissioning checklist prevents the "we tightened it so it's done" problem. Include:

• Confirmed load calculation with installed components.
• Anchor torque verified and documented.
• Level and alignment checked within tolerance.
• Movement allowance verified for thermal expansion.
• Vibration isolation installed where specified.
• Coating integrity inspection.
• Service clearance verified.
• Signed acceptance by installer and mechanical engineer.

Make the installer sign the checklist and keep it with the project records.

Inspection and maintenance: schedules that matter

Routine inspection avoids surprises. Simple cadence:

• Weekly: visual check for loose bolts or visible corrosion.
• Quarterly: torque test critical fasteners, check rubber isolators for hardening or cracking.
• Annually: remove and inspect coating, repaint or recoat as required, check welds and plate deformation.

When vibration monitoring is present, set alarm thresholds for sustained increases that suggest loosening or fatigue.

How to know when replacement is necessary

Replace a bracket when you see:

• Structural bending or permanent deformation.
• Coating failure with rust deeper than surface scale.
• Crack formation near welds.
• Repeated fastener failure after proper torqueing (indicates fatigue).

If replacement is likely, plan it with minimal system interruption: drain and isolate only the affected run, prepare a prefabricated replacement mounting assembly, and schedule work during low usage windows.

Costing decisions: initial spend vs lifecycle cost

People often choose the cheapest bracket on price alone. Instead, do a simple lifecycle cost comparison:

• Purchase price.
• Expected maintenance frequency and cost.
• Expected replacement interval.
• Downtime cost per hour (lost production, labor).
• Energy or efficiency impact (minor but real if vibration causes efficiency loss).

In many projects, a slightly higher upfront cost for better material and design pays back in fewer service calls and less downtime. Run a quick payback for your project assumptions.

Customization and modular options

Many manufacturers now offer modular bracket systems:

• Pre-cut slots for common pipe sizes.
• Pre-drilled plates to match common anchor patterns.
• Quick-release clamps for fast maintenance.

If you design multiple buildings or repeat projects, standardize on one modular system. It simplifies spares and speeds field work.

Case study, simplified and practical

A medium-sized office tower replaced older manifold supports during an HVAC upgrade. The original supports were thin plates bolted to block walls; over time they had bowed and corroded. The upgrade involved:

• Replacing with welded reinforced plates mounted to a steel sub-frame.
• Adding sliding pads to accommodate thermal expansion.
• Installing neoprene pads at contact points to reduce vibration.
• Recoating all exposed surfaces with epoxy finish.

Outcome: after six months there were no leaks, minimal noise complaints and planned HVAC checks were easier because valves were accessible.

Procurement checklist for buyers

When ordering, include these in the purchase specification:

• Exact pipe diameters and manifold dimensions.
• Load assumptions and dynamic factors used.
• Anchor type and substrate details.
• Required finish type and coating spec (including surface prep).
• Required adjustability (slots, removable clamps).
• Welding or fabrication tolerances.
• Delivery and lead time expectations.
• Warranty terms and test certificates (material and coating).

Don't buy off a photo alone. Ask for drawings and a fabrication plan.

Practical field tips for installers

• Always dry-fit before drilling anchors.
• Use a torque wrench and record readings.
• If the bracket is to be welded in place, ensure welders use certified procedures and that heat doesn't affect nearby components.
• When bolting to thin metal, distribute load with backing plates.
• Label each support position during assembly so post-install checks match the installation drawings.

Traps to avoid when retrofitting old systems

• Reusing old anchor holes without verifying integrity.
• Assuming old pipe runs had correct thermal allowance — they may not.
• Neglecting to coordinate with other trades (electrical raceways often pierce the same walls).
• Overlooking the need to isolate vibration sources (pump mounts etc.) when upgrading supports.

A measured, staged retrofit avoids surprises.

Small innovations that pay off

• Integrated leveling studs let you adjust the bracket on site to exact elevation without shims.
• Removable guard plates let technicians access valves without removing the main support.
• Wear indication slots machined into plates reveal when material loss reaches service threshold.

These practical features are cheap to add in design but save real labor later.

Checklist before you sign off

• Load calc reviewed and signed by engineer.
• Bracket design has slots/adjustability where needed.
• Fasteners and anchors specified for dynamic loads.
• Thermal movement plan agreed.
• Coating and material match environmental exposure.
• Commissioning and inspection checklist included in handover.

If all those boxes are ticked, the manifold will stay where you put it — and your maintenance team will thank you.

Manifolds and supporting brackets are not glamorous, but they matter. The right bracket design reduces maintenance, keeps valves reachable, reduces vibration problems and saves money over the life of the system. Spend a little time on load calculations, choose suitable materials, specify adjustability and service clearance, and set a realistic maintenance cadence. Those straightforward steps make a big difference in reliability.
