Pipe clamp with Rubber insulation

Home / Product / Clamps / Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
  • Pipe clamp with Rubber insulation
JY-1001

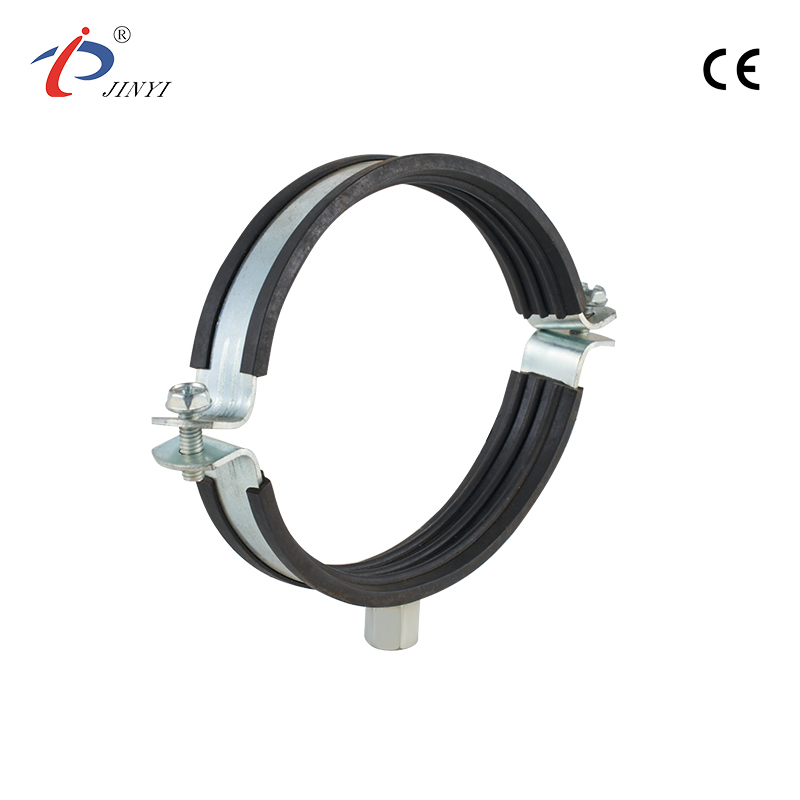

Pipe clamp with Rubber insulation

WHY?

• Robust pipe bracket with 2 screws for all types of tubes

• Suitable for horizontal or vertical fixing/mounting (wall, ceiling and/ or mounting rail)

• Quick-close system

SPECIFICATIONS

• Heat resistance following DIN 4102: Class B2

• Temperature resistance: from -50°C to +110°C

• Sound-absorbing rubber (EPDM) according to DIN 4109

CONTACT US
01Specification 03Application 04Inquiry

It is designed for secure and stable installation of various pipe systems. Featuring a robust two-screw bracket, it ensures reliable fastening for different tube sizes. The quick-close system makes installation faster and easier, while the EPDM rubber lining provides effective sound absorption, reducing vibration and noise transmission. With excellent durability and fire resistance compliant with DIN 4102 Class B2, the clamp maintains strong performance even under demanding conditions.
Applications
This insulated pipe clamp is suitable for plumbing, HVAC systems, industrial piping, and construction projects. It can be mounted horizontally or vertically on walls, ceilings, or mounting rails, making it versatile for different installation environments. The rubber insulation not only prevents heat loss but also protects pipes against wear and movement.
Specifications
Product Name: Pipe Clamp with Rubber Insulation
Model No.: JY-1001
Material: Steel with EPDM rubber lining
Mounting: Horizontal / Vertical (wall, ceiling, mounting rail)
Heat Resistance: DIN 4102 Class B2
Temperature Range: -50°C to +110°C
Features: Quick-close system, vibration damping
Sizes: Various tube diameters available

NO. SIZE METRIC FOR WIDTH(mm) THICKNESS(mm) NUT
JY-1001 1/4"-3/8" φ18 15-19 20 1.8 M8/M10
1/2" φ22 20-25 20 1.8 M8/M10
3/4" φ28 26-30 20 1.8 M8/M10
1" φ35 32-36 20 1.8 M8/M10
1-1/4" φ40 38-43 20 1.8 M8/M10
1-1/2" φ48 47-51 20 1.8 M8/M10
2" φ60 60-67 20 1.8 M8/M10
2-1/2" φ75 75-80 20 1.8 M8/M10
3" φ90 87-92 20 1.8 M8/M10
3-1/2" φ100 99-105 20 1.8 M8/M10
4" φ115 113-118 20 1.8 M8/M10
4-1/4" φ125 125-130 20 1.8 M8/M10
4-1/2" φ130 132-137 20 1.8 M8/M10
5" φ140 138-142 20 1.8 M8/M10
6" φ160 159-166 20 1.8 M8/M10
8" φ200 199-212 20 1.8 M8/M10
