JY-1029

Curved Saddle Clamp

WHY?

• Designed for stable and precise installation of dual pipe clamps or conduits on flat surfaces

• Pre-drilled large and small holes allow easy alignment and fastening of multiple clamp sizes

• Made from galvanized steel for enhanced strength and corrosion resistance in harsh environments

• Ensures secure, evenly spaced pipe mounting and reduces vibration transmission to walls or ceilings

• Ideal for HVAC, plumbing, or industrial piping applications requiring dual bracket support

• Flat plate design simplifies integration into structural or customized bracket systems

CONTACT US
01Specification 03Application 04Inquiry

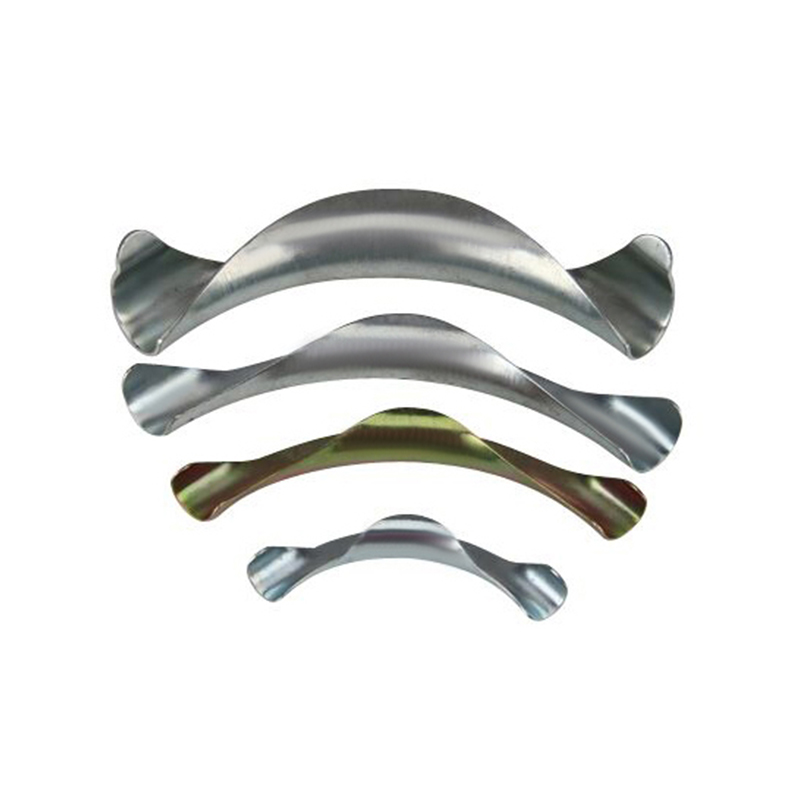

The JY-1029 Pipe Bend Former, also known as a Pipe Guiding Elbow, provides smooth 90° bends for heating pipes without kinks that reduce water flow. It features a robust pipe bracket with 2 screws, ensuring secure fixation for different types of tubes. The design supports horizontal or vertical mounting on walls, ceilings, or mounting rails, offering flexibility in installation. With a quick-close system, the product allows faster and more reliable assembly. Its sound-absorbing EPDM rubber lining reduces vibration and noise, while the steel body ensures durability.
Applications
This product is widely applied in underfloor heating systems, manifold cabinets, and pipe transitions through floors and ceilings. It prevents excessive pipe bending, secures pipe direction, and supports stable heat transfer. Suitable for residential and commercial projects, it ensures both efficiency and ease of installation.
Specifications
Product Name: Pipe Bend Formers / Guiding Elbows
Model No.: JY-1029
Material: Steel with EPDM rubber lining
Sizes: 16mm, 20mm, 25mm, 32mm
Mounting: Horizontal / Vertical (wall, ceiling, or rail)
Heat Resistance: DIN 4102 Class B2
Temperature Range: -50°C to +110°C
Branding: Laser printing available
Certification: CE approved
Sample: Available

NO. FOR
JY-1029 16
20
25
32
